Tripod Turnstile Gate - TS01
Stable & Reliable Pedestrian Access Control Tripod Turnstile Gate

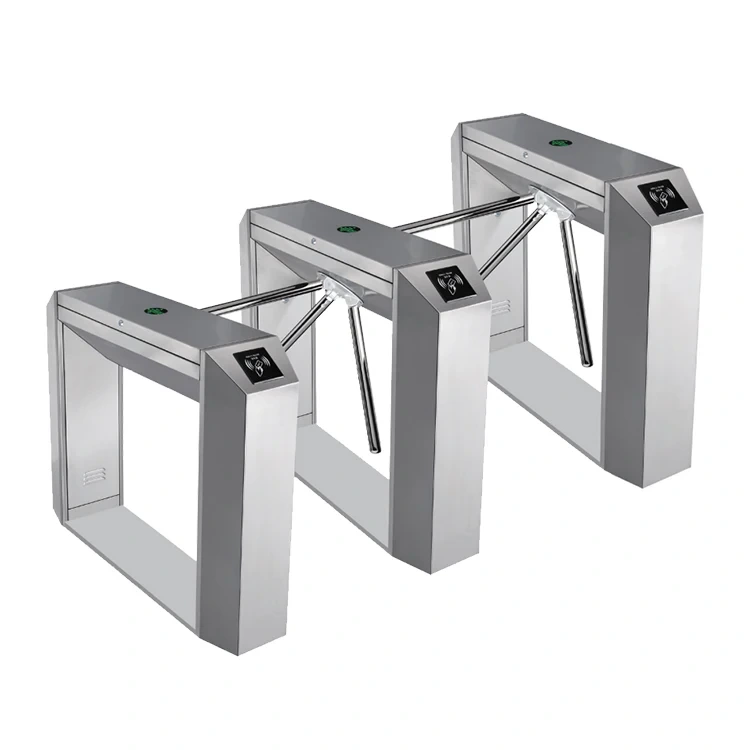

SUS304 Stainless Steel Housing | Anti-tailgating | Multi-identification Compatible | Multi-channel Combination Available
The TS01 Semi-Automatic Tripod Turnstile Gate is designed for efficient pedestrian access control in commercial, industrial and public facilities. Its compact tripod mechanism provides controlled one-person-at-a-time access while allowing integration with different access control systems.
With a durable stainless steel structure, reliable mechanical operation and flexible access control compatibility, the TS01 is a practical solution for managing employee, visitor and authorized personnel access.
CE Certificated, ISO9001 Certificated.
Tripod Turnstile Gate Product Specifications
Core Advantages
Rich interface: RS485 & TCP/IP for easy system integration
Multiple verification methods: IC/ID card, barcode, QR code, fingerprint, face recognition
Stable performance, adapt to indoor & outdoor environment
Customizable material: 304 / 201 stainless steel optional
Key Specifications
Model: TS01 Turnstile
Type: Semi-Automatic Tripod Turnstile Gate
Passage Direction: Single Direction or Bidirectional
Opening Time: Approximately 0.5 Seconds
Passage Speed: More Than 30 Persons per Minute
Clear Passage Width: 500–550 mm
Standard Passage Width: 550 mm

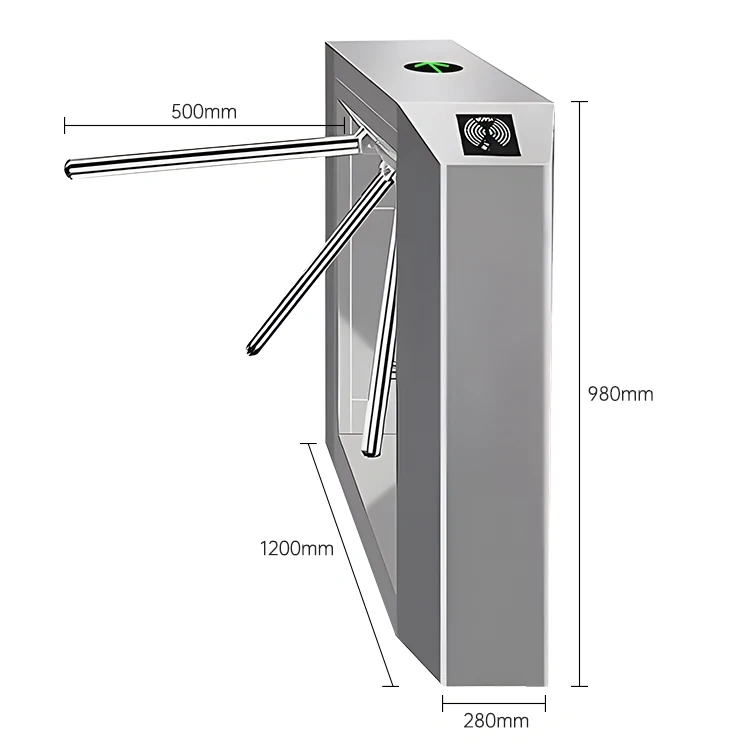

Overall Dimensions: 1200 × 280 × 980 mm
Communication: RS485 Standard; TCP/IP Optional
Installation: Indoor or Outdoor with Recommended Rain Canopy
Tripod Turnstile Gate System Advantages
Heavy-Duty SUS304 Stainless Steel Frame
Anti-rust and wear-resistant, stable long-term operation for this waist-height turnstile.
Reliable Mechanical Tripod Structure
Smooth rotation, anti-tailgating, ideal pedestrian turnstile gate for high-frequency access.
Multi-Mode Verification Integration
Works with face, fingerprint, QR & ID card, building a complete turnstile access control system.
Flexible Passage Management
Single/bi-direction configurable, acts as an effective visitor gate for staff & guest separation.
Direct Supply from Professional Manufacturer
We are trusted tripod turnstile manufacturers, support customization for all access control turnstile gate projects.
Wide Compatibility & Global Certifications
Easy docking with ticketing, construction site real-name systems; CE & ISO certified access control turnstile.
Detail Information
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Place Of Origin | China | Certification | CE / ISO9001 |
| Framework Material | 304# Stainless Steel | Dimension | 420L*330W*990H Mm |
| Stretching Out Arm Length | 500mm | Passing Speed | 30 Persons/Min |
| Passage Width | 550mm | Mean Time To Failure | Min. 5 000 000 |
| Relative Humidity | ≤95% Not Condensed | Working Environment | Indoor Or Outdoor |
| Packaging Details | Carton And Wooden Packing | Supply Ability | 2000 Units Per Month |
| Highlight | pedestrian turnstile gate, tripod access system | — | — |
Product Description
Semi-Automatic Vertical Tripod Turnstile Gate | Pedestrian Security Tripod Barrier | Access Control Turnstile
Basic Information
- Model NO.: TS01
- Brand: ZHANJIANG
- Sensing Method: Electric
- Application: Pedestrian Access Control System
- Movement: Single Movement
- Type: Three Roller Tripod Gates
- Control Mode: Semi-Automatic
- Communication Interface: RS485, TCP/IP
- Housing Size: 420L*330W*990H mm
- Housing Material: 304 Grade Stainless Steel (Optional 316 Stainless Steel)
- Passing Speed: 30-45 Persons/Min
- Working Voltage: AC220V±10V, 50Hz
- Supported Control Type: IC / ID Card, Barcode, QR Code, Fingerprint, Face Recognition
- Boom Length: ≤700mm
- Passage Direction: Single-direction or Bi-directional
- Operating Humidity: ≤90% Non-Condensing
- Working Temperature: -25℃ ~ +60℃
- Operation Life: More Than 5 Million Times
- Transport Package: Export Standard Wooden Package
- Certifications: CE, ISO9001, SGS
- Place of Origin: China
Applications of Tripod Turnstile Gate
As a cost-effective and reliable pedestrian access control solution, the Tripod Turnstile Gate by Zhanjiang Group delivers stable security management for diversified public and industrial sites. Below are the primary application scenarios for the tripod turnstile barrier:
- Industrial Parks & Factories: Standardize staff access and attendance management, durable for long-term heavy use.
- School Campuses: Monitor student entry & exit, enhance campus safety protection.
- Scenic Spots & Stadiums: Connect with ticketing system for automatic ticket checking to handle large visitor flow.
- Transport Hubs (Station & Terminal): Guide one-way passage and maintain public order.
- Residential Communities: Work with face/card access control to restrict unauthorized visitors.
- Government & Public Buildings: Realize orderly access control with anti-tailgating function.
- Construction Sites: Support real-name registration system for construction workers.
Why Choose Tripod Turnstile Gate?
1. Complete Access Control System
2. Durable Waist-height Design
3. Flexible Passage Management
4. Easy System Integration
5. Direct Manufacturer Supply
6. Wide Range of Uses
How to Choose the Right Turnstile Gates | Zhanjiang Group
Tripod turnstile manufacturers-Zhanjiang Smart Gate
Choose turnstiles by crowd, space and security level: full-enclosed anti-tailgating for high-security sites, shock-resistant wide-channel for industrial areas, low-noise stylish models for commercial/office spaces, cost-effective high-flow for public areas, and compact precise-verification units for small spaces.
Pick the optimal type to avoid redundant costs: tripod turnstiles (parks/sites), swing turnstiles (factories/logistics), flap turnstiles (offices/malls), speed gates (premium spaces), and full-height turnstiles (maximum security).
Opt for functions that fit your needs: basic IC/QR or advanced face/fingerprint verification, smart system integration, and IP65+ waterproof/anti-pinch protection.
Leverage Zhanjiang Group’s strengths: customized turnstile solutions, durable 304/316 stainless steel construction, 1–3 year warranties, and CE/ISO certification for global use.
Contact us to design a free solution
TS01 Tripod Turnstile vs Other Turnstile Types
Different entrance environments require different pedestrian access solutions.
| Requirement | TS01 Tripod Turnstile Gate | Swing Gate | Flap Barrier / Speed Gate | Full‑Height Turnstile |
|---|---|---|---|---|
| Cost‑effective pedestrian control | Strong fit | Good fit | Usually higher investment | ‑ |
| Controlled one‑person passage | Strong fit | Depends on control logic | Strong fit | Strong fit |
| Factory attendance access | Strong fit | Good fit | Good fit | Strong fit |
| Construction‑site worker entry | Strong fit with rain protection | Possible | May be unnecessary for basic access | Strong fit |
| RFID card access | Compatible with external controller | Compatible with external controller | Compatible with external controller | Compatible with external controller |
| Facial‑recognition integration | Compatible with external controller | Compatible with external controller | Compatible with external controller | Compatible with external controller |
| Wheelchair or stroller access | Requires a separate accessible lane | Strong fit | Wide‑lane model may fit | Requires separate accessible lane |
| Premium office‑lobby appearance | Functional and practical | Good | Usually best | Medium |
| Compact installation | Strong fit | Depends on passage width | Depends on model | High space requirement |
| Budget‑sensitive project | Strong fit | Moderate | Usually less suitable | Less suitable |
* Select the appropriate model/configuration according to the installation environment.
Which One Should You Choose?
Choose a tripod turnstile when you need a compact and practical pedestrian access solution.
Choose a flap barrier when higher pedestrian throughput and a wider visual barrier are required.
Choose a swing turnstile when appearance, accessibility or wider passage requirements are important.
Choose a full‑height turnstile when a higher level of physical security is required.
Turnstile Gate
Intelligent Entrance Solution: Solving Your Core Business Pain Points
| Business Pain Points | Our Solutions |
|---|---|
| Uncontrolled tailgating & unauthorized entry leading to security breaches | Full-height anti-tailgating turnstiles + AI video recognition, accurately intercepting illegal access and eliminating security loopholes |
| Low passage efficiency & congestion in high-traffic scenarios | High-speed flap/speed gates supporting face/QR code verification, delivering up to 30 persons per minute per channel |
| Frequent equipment damage & high maintenance costs in harsh outdoor/industrial environments | 304/316 stainless steel construction with IP65+ waterproof/dustproof rating, shock-resistant design for long-term durability |
| Low efficiency & high labor costs of manual attendance/access control | Integrated intelligent turnstile system with automatic attendance & access data reporting, reducing manual intervention by 80% |
| Poor equipment adaptability to diverse scenarios (e.g., industrial parks, office buildings) | Customizable channel width, material & functions: wide shock-resistant channels for industrial use, low-noise stylish designs for commercial spaces |
| High operational noise disrupting office/commercial environments | Silent movement core + shock-absorbing structure, ensuring noise levels <50dB for a comfortable experience |

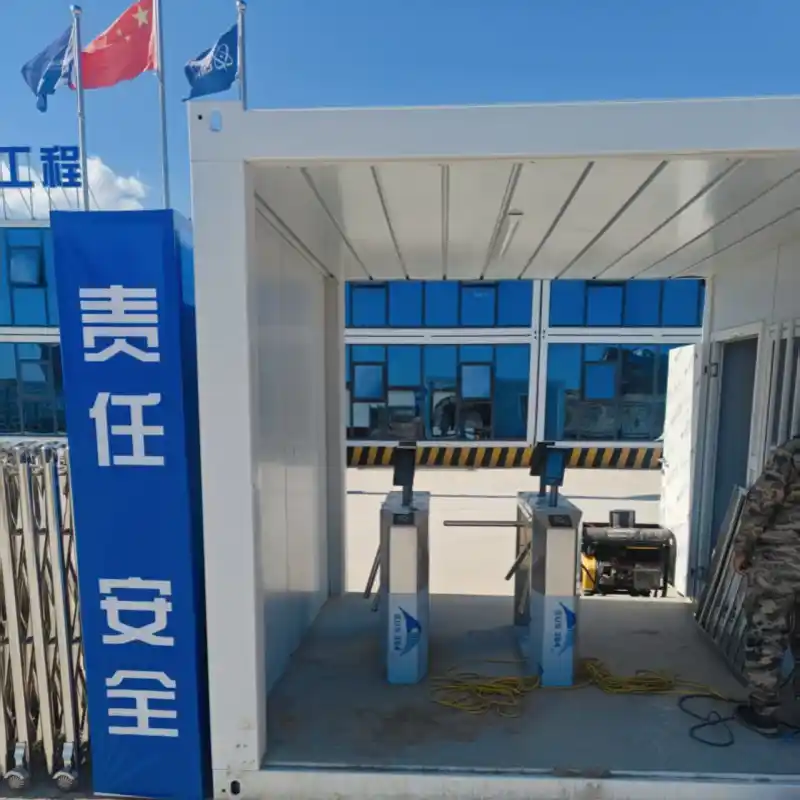

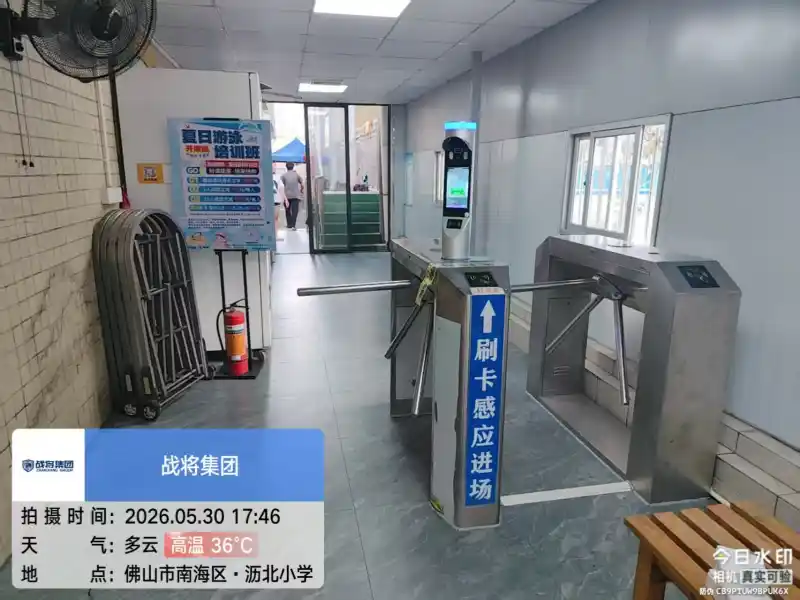

More Installation Project
Tripod Turnstile Gate FAQ
What are the different types of turnstiles?
The main types include tripod turnstiles, flap barrier gates, swing barrier turnstiles, speed gates and full-height turnstiles. Tripod turnstiles are a practical and cost-effective choice for factories, schools, construction sites, scenic spots and other pedestrian entrances.
What is a turnstile gate?
A turnstile gate is a pedestrian access-control device that allows authorized people to pass one person at a time. It can be connected to card readers, QR code scanners, fingerprint terminals, face recognition systems and other access-control equipment.
What are the parts of a turnstile called?
A tripod turnstile normally consists of a stainless steel housing, tripod arms, rotating mechanism, control board, access-control interface, indicator lights and safety sensors. Optional readers, QR scanners, face recognition terminals and other devices can be installed according to the project requirements.
What are turnstiles used for?
Turnstiles are used to manage pedestrian entry and exit, prevent unauthorized access and create an access record. Common applications include factories, industrial parks, schools, campuses, offices, residential communities, construction sites, stadiums and scenic spots.
