High‑Speed Swing Speed Gate Turnstile ZJ‑S01
Servo Motor Access Control Barrier Gate for Commercial Building
SUS304 Stainless Steel Housing | Anti-tailgating | Multi-identification Compatible | Multi-channel Combination Available
Key Features
✅ Servo Motor Drive — 0.5s quick opening & smooth operation, low noise, long service life
✅ 304 Stainless Steel Cabinet — 1.2mm thickness for cover & main body, anti‑rust for indoor commercial environment
✅ Anti‑tailgating Infrared Detection — Standard 4 pairs infrared sensors, optional expandable sensors
✅ Dual‑direction Passage Mode — Support one‑way / two‑way traffic control
✅ Rich Peripheral Compatibility — Work with face recognition terminal, QR code scanner, IC card & ID card reader
✅ Multiple Communication Interface — RS485, optional TCP/IP for system integration
✅ Wide Working Temperature：‑10℃ ~ 60℃, humidity 5%‑95% non‑condensing
✅ Acrylic transparent swing barrier panel, elegant rounded‑arc appearance
Applications of Speed Gate Turnstile
- Industrial Parks & Factories: Standardize staff access and attendance management, durable for long-term heavy use.
- School Campuses: Monitor student entry & exit, enhance campus safety protection.
- Scenic Spots & Stadiums: Connect with ticketing system for automatic ticket checking to handle large visitor flow.
- Transport Hubs (Station & Terminal): Guide one-way passage and maintain public order.
- Residential Communities: Work with face/card access control to restrict unauthorized visitors.
- Government & Public Buildings: Realize orderly access control with anti-tailgating function.
- Construction Sites: Support real-name registration system for construction workers.
Why Choose Speed Gate Turnstile?
- Brand‑name servo motor, power & infrared sensor, low failure rate
- 1.2mm 304 stainless steel cabinet, rounded‑arc safety design
- 0.5s fast opening, reliable anti‑tailgating infrared detection
- Rich interface, compatible with face/QR/IC card access devices
- Single‑core & dual‑core optional, adjustable passage width
- Factory direct, full‑set project technical support
How to Choose the Right Speed Gates | Zhanjiang Group
turnstile manufacturers-Zhanjiang Smart Gate
Scenario & Security Needs Choose turnstiles by crowd, space and security level: full‑enclosed anti‑tailgating for high‑security sites, shock‑resistant wide‑channel for industrial areas, low‑noise stylish models for commercial/office spaces, cost‑effective high‑flow for public areas, and compact precise‑verification units for small spaces.
• Select the Right Turnstile Type Pick the optimal type to avoid redundant costs: tripod turnstiles (parks/sites), swing turnstiles (factories/logistics), flap turnstiles (offices/malls), speed gate turnstiles (premium residential & commercial spaces), and full‑height turnstiles (maximum security).
• Match Core Functions & Params Opt for functions that fit your needs: basic IC/QR or advanced face/fingerprint verification, smart system integration, and IP65+ waterproof/anti‑pinch protection.
• Focus on Factory Strength & After‑sales Leverage Zhanjiang Group’s strengths: customized turnstile solutions, durable 304/316 stainless steel construction, 1‑3 year warranties, and CE/ISO certification for global use.
Contact us to design a free solution

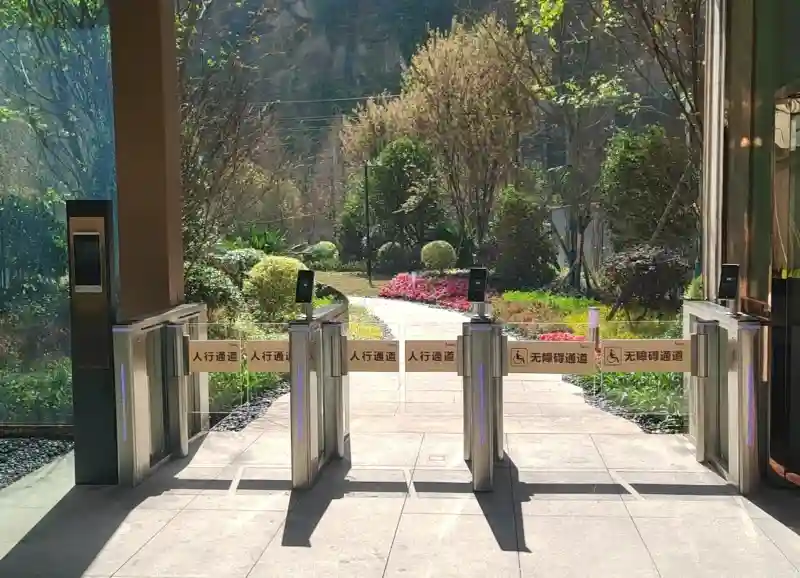

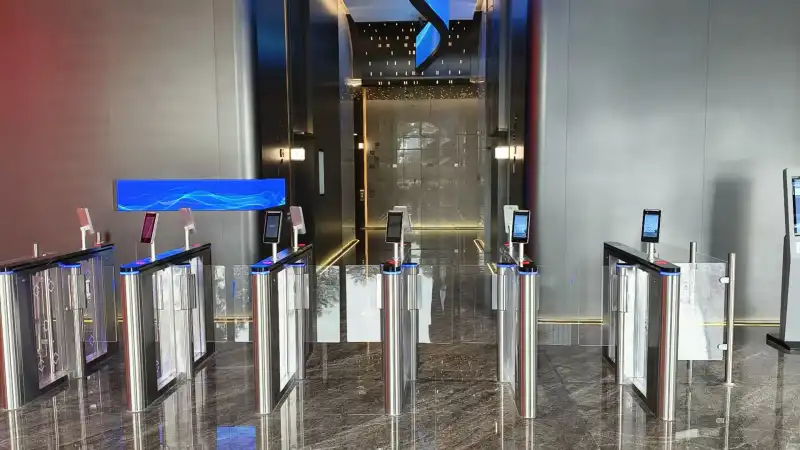

More Installation Project
Speed Gate Turnstile FAQs
Q1: What are speed gates?
Speed gates, also called speed gate turnstiles, are high‑end pedestrian access swing barriers. Servo‑driven for fast, quiet and smooth passage. Widely used in residential lobbies, office buildings, commercial plazas and airports. They support face recognition, QR code and IC card verification to control access and prevent tailgating.
Q2: What is the difference between speed gate and tripod turnstile?
Speed gates adopt transparent barrier panels with faster opening speed and premium appearance, ideal for high‑grade commercial & residential projects. Tripod turnstiles are cost‑effective 3‑arm gates, more fit for factories, construction sites and heavy‑usage public areas.
Q3: What lane width do speed gates support?

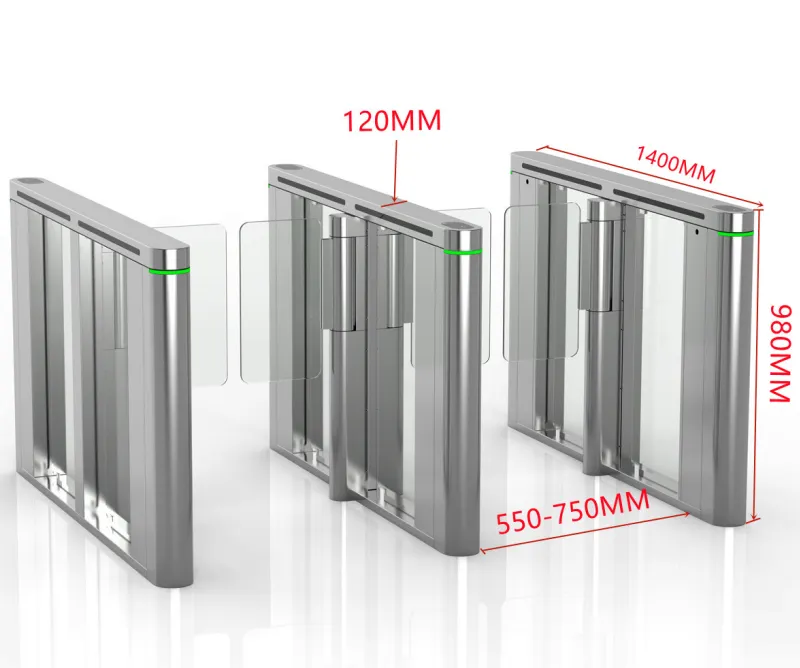

Our ZJ‑S01 speed gate supports standard 550‑750mm passage width. Wider accessible lanes can be customized for wheelchairs and luggage. Single‑core and dual‑core models are optional for different lane layouts.
Q4: Which access readers can connect to speed gate turnstiles?
Speed gates work with face recognition terminals, QR scanners, IC / ID card readers via dry‑contact signal. RS485 is standard, TCP/IP optional for smart system integration.
Q5: Are you speed gate factory? How can I get a project quote?
We are direct manufacturer for speed gates and turnstiles. Please tell us your lane quantity, passage width and access control requirements. Reach us via WhatsApp: +8618927792680 for datasheet and factory‑direct quotation.
