Retractable Outdoor Gate ZJ-522
Product Introduction
Heavy-Duty Aluminum Alloy
Ultra-Smooth, Silent & Stable Automatic Telescopic Operation
Multiple Access Control Options (Remote / Keypad / RFID / LPR)
Infrared Safety Sensors & Obstacle Auto-Rebound Protection
Fully Customizable Length, Height & Color for Any Entrance
IP54 Weatherproof & Anti-Rust Surface Treatment
Low Maintenance & Easy-to-Install Modular Design
Stretch ratio: 1: 0.13+0.40
Standard Height: 1600mm
Product Specifications
Parameter | Details |
|---|---|
| Material | High-Strength Aluminum Alloy |
| Max Opening Length | 6m / 8m / 10m / 12m (Customizable) |
| Gate Height | 1.5m / 1.6m / 1.8m (Standard, Customizable) |
| Motor Power | 550W / 750W DC Brushless Motor |
| Operating Voltage | AC 220V / 110V (Compatible with global power grids) |
| Opening/Closing Speed | 15-20m/min |
| Protection Grade | IP54 (Waterproof, Dustproof) |
| Working Temperature | -40℃ ~ +60℃ |
Remote Control Distance | ≥30m |
Product Specifications
Technical Specifications
We support full OEM and custom production configurations to align precisely with your site blueprints:
Material Selection: Weather-resistant Aluminum Alloy (for smooth, lightweight, and rust-free operations).
Custom Span Capability: Fully scalable up to a retractable outdoor gate 12m / 12 feet or broader for multi-lane commercial entrances.
Intelligent Drive Motor: High-torque 370W, 450W, or 650W pure copper intelligent gate motors equipped with thermal protection.
Navigation & Wheels: Advanced trackless smart magnetic guidance or dual-track mechanical setups, rolling on high-wear polyurethane wheels.
System Integration: Seamlessly syncs with desktop controls, wireless remotes, Automatic Number Plate Recognition (ANPR), and digital access control checkpoints.

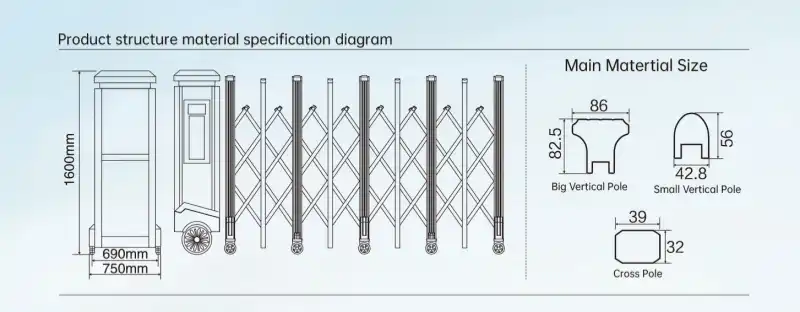

Engineering Data
| Overall Height | 1600 mm |
| Gate Head Outer Width | 750 mm |
| Gate Head Inner Width | 690 mm |
| Main Vertical Pole | 86 × 82.5 mm aluminum profile |
| Secondary Vertical Pole | 42.8 × 56 mm aluminum profile |
| Cross Pipe | 39 × 32 mm oval pipe |
| Raw Material | Aluminum Alloy / 304 Stainless Steel |
| Structure | Accordion retractable folding |
| Custom Length | Min 5m, Max 20m |
Applications of Automatic Retractable Gate
Our retractable outdoor driveway gate systems are purposely designed to handle the high-frequency, wide-span access control needs of various global B2B sectors:
Logistics & Heavy Manufacturing
retractable outdoor gate for factory: Ideal for industrial park main entrances where heavy logistics trucks and container carriers cycle through constantly.
Educational Campuses
retractable outdoor gate for school: Provides a highly visible, automated barrier that restricts unauthorized vehicles during peak drop-off hours, ensuring student safety.
Infrastructure & Civil Projects
retractable outdoor gate for construction site: Offers a rugged perimeter seal capable of performing reliably in high-dust, heavy-debris environments during long-term developments.
Corporate & Commercial Properties
retractable outdoor gate for commercial: Elevates the architectural profile of corporate headquarters, multi-tier parking complexes, and commercial plazas while managing traffic flow efficiently.

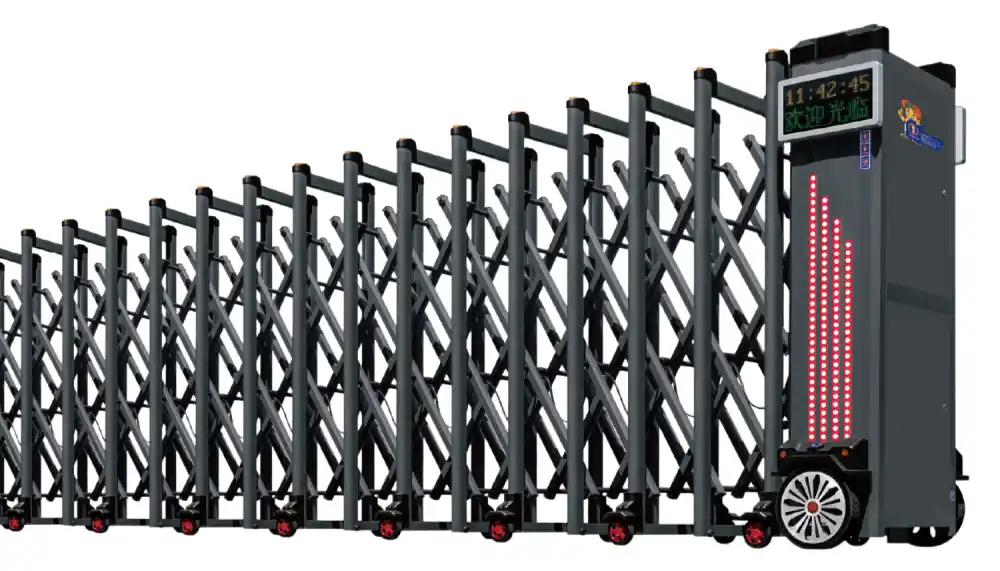

Retractable Gate Outdoor
Customer Pain Points & Targeted Solutions
| Common Customer Pain Point | Supporting Technical Data | ZJ-522 Retractable Outdoor Gate Professional Solution |
|---|---|---|
| Limited entrance space, worried that the retracted gate will block daily vehicle access | Stretch ratio: 1 : 0.13+0.40 | Industry-leading compression rate. A 10-meter fully extended gate only takes up 1.3 meters space when fully folded. It saves maximum entrance area and fits perfectly for narrow-site installation. |
| Gate is too low, easy to climb over, poor site security | Total Height: 1600 mm | 1600mm full height design, effectively prevents unauthorized climbing and trespassing, greatly improves safety level for factory, campus and residential entrances. |
| Gate shakes violently and bends easily under strong wind |
Gate Head Width: 750 mm Gate Body Width: 690 mm Main Big Vertical Post: 86 × 82.5 mm thick aluminum profile Small Vertical Post: 42.8 × 56 mm aluminum profile Cross Brace Pipe: 39 × 32 mm oval tube |
Integrated thickened profile frame, excellent wind resistance. The whole gate stays stable without shaking or permanent deformation even in strong outdoor wind conditions. |
| Gate gets rusted, faded and damaged quickly from long-term outdoor, rainy or coastal salt spray exposure | Premium aluminum alloy raw material | Natural anti-rust aluminum alloy material, excellent UV, rain and salt spray corrosion resistance. Zero rust for lifetime, no frequent daily maintenance required. |
| Heavy operation, stuck movement, loud noise, short motor service life | Lightweight high-strength aluminum structure | Much lighter than stainless steel gates. Ensures ultra-smooth, quiet extend & retract operation, greatly reduces motor load and extends overall product lifespan. |
| Thin and fragile structure, easy to bend and break after slight collision or daily scratch | Dual vertical pole + stable cross-link bracing system | Optimized mechanical grid structure with dual thickened columns. Outstanding impact resistance, not easy to deform even after accidental bumps and daily heavy-duty use. |
| Confused about budget, doubt aluminum alloy premium cost is not worthwhile | Full upgraded heavy-duty premium configuration | Although the one-time unit cost is higher, it eliminates all later rust treatment, repair and part replacement fees. It delivers far lower total ownership cost and premium high-end appearance for long-term projects. |
Automatic Retractable Gate Features & Functions
High-Performance Propulsion System
Unmatched Power: The system features industrial-grade dual motors with a maximum power of 650W.
Extreme Climate Resilience: Engineered to operate reliably in harsh environments, with a working temperature range of -35°C to +50°C.
Precision Output: Delivers an output speed of 43.5 r/min and a high torque of 28N.m, ensuring effortless movement for heavy-duty gates.
- Heavy Duty Copper Core Motor, stable silent operation, 100000+ open&close test passed
Integrated Motor Box Architecture
Advanced Control: Equipped with the Latest Control System for intelligent command processing and multi-device compatibility.
Refined Engineering: Features a Hidden wire trough for a cleaner internal layout and protection against wire wear.
Industrial Transmission: Utilizes Smooth Gearwheels and high-end chains for low-friction, noise-reduced operation.
Structural Stability: Built on a Stainless Steel Bottom Plate and reinforced with a Windproof Grounding Device to withstand high-velocity winds.
Integrated reinforced frame, strong wind resistance, long term outdoor stable use
Intelligent Display & Aesthetics
Dynamic Communication: An Energy-conservation LED Display is integrated into the pillar to show rolling “Welcome” messages or alerts.
Smart Visibility: The circular illuminated border provides high visibility during night-time operation while maintaining low power consumption.
- Smart LED control panel, fault self-check, easy daily operation
Durable Structural Components
Wear-Resistant Cross Poles: The stainless steel cross poles are wrapped with an aluminum wear-resistant cover, significantly extending the gate’s operational lifespan.
- Wear-resistant universal wheels, flexible movement, no floor scratching.
Precision Profiles:
Vertical Pole: 51mm x 50mm.
Cross Pole: 39mm x 32mm.
Stainless Steel VS Aluminum Alloy: Which Is Right For Your Project?
| Comparison Item | Stainless Steel | Aluminum Alloy (ZJ520 Series) |
|---|---|---|
| Core Feature | High hardness, strong impact resistance | Premium lightweight, permanent anti-rust & premium aesthetic |
| Best Suitable Scenarios | Heavy industrial factories, high-traffic entrances, high collision risk sites | Coastal salt spray areas, high-end commercial buildings, luxury residential projects |
| Corrosion & Weather Resistance | Good rust-proof, needs routine maintenance | Excellent UV, rain & salt corrosion resistance, zero maintenance lifetime |
| Weight & Operation | Heavy duty, excellent wind & sway resistance | Ultra lightweight, smooth & quiet automatic telescopic movement |
| Unit Cost & Budget | Budget-friendly, high cost performance | Higher grade raw material, overall cost is more expensive |
| Appearance & Customization | Classic metal silver finish, durable raw texture | Smooth texture, abundant powder coating colors, premium luxury look |
