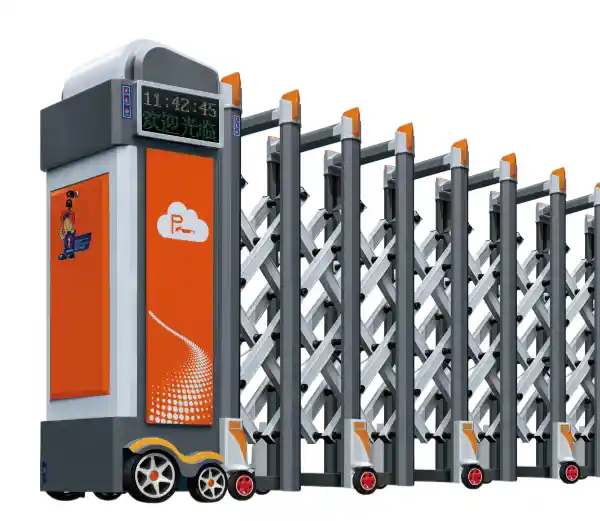

Automatic Retractable Gate ZJ2028H

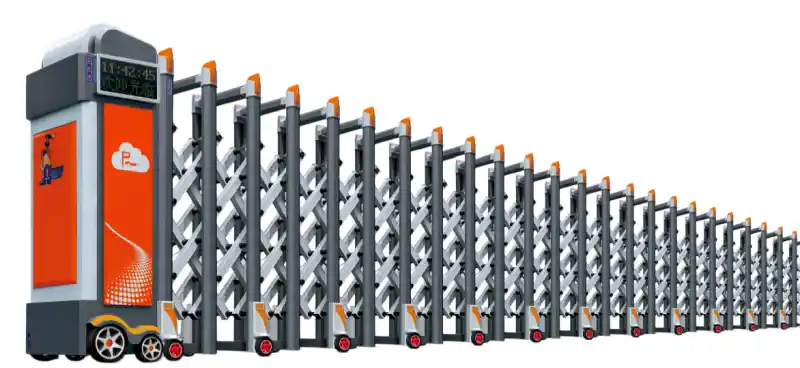

ZJ2028H Aluminum Alloy Automatic Retractable Gate
Patented Wheel Cover Head | Three-row Linkage | High-Durability Aluminum Alloy Industrial Retractable Gate
ZJ2028H aluminum alloy retractable gate features 80460.9mm main material, 50400.9mm auxiliary material, three-row linkage structure, and patented wheel cover head. Retraction ratio 1:0.23+0.5. Ideal for factories, ports, logistics parks & parking lots. Direct factory supply, customizable, CE/ISO certified.
Automatic retractable Gate
| Parameter | Details | Parameter | Details |
|---|---|---|---|
| Model | ZJ2028H | Series | Boyuan Series |
| Main Material | 80*50*0.9mm Aluminum Alloy | Auxiliary Material | 50*40*0.9mm Aluminum Alloy |
| Retraction Ratio | 1:0.23 + 0.5 | Gate Height | 1.6m |
| Wheel Diameter | 700mm | Total Width | 760mm |
| Core Structure | Three-row Linkage | Patent Design | Wheel Cover Head (Patented) |
| Material | High-Strength Aluminum Alloy | Application Scenarios | Industrial Parks, Ports, Logistics Parks, Large-Scale Parking Lots |
Why Choose ZJ2028H Retractable Gate?
Support custom retraction length, gate color, and optional functions (ANPR, intelligent control system).
1. Patented Wheel Cover Head Design
- Advantage: Exclusive patented wheel cover head structure protects drive components
- Benefit: Extends service life, reduces maintenance costs for high-frequency outdoor use
- Proof: Patent Certificate
2. High-Strength Aluminum Alloy Material
- Advantage: 80460.9mm main + 50400.9mm auxiliary aluminum alloy, corrosion & weather-resistant
- Benefit: Non-deformable, long-lasting, suitable for coastal/humid environments
- Proof: Material Test Report (Include Core Test Indicators)
3. Three-row Linkage Stable Structure
- Advantage: Synchronous three-row linkage design ensures smooth retraction
- Benefit: Reduces jamming/offset risks, improves traffic efficiency for high-flow sites
- Benefit: Ensures orderly vehicle/pedestrian access in large parks/ports
4. Large Wheel Diameter High Adaptability
- Advantage: 700mm wheel diameter, 760mm total width, 1.6m gate height
- Benefit: Fits mainstream large access entrances, wide visibility, stable operation on complex roads
| Item | Details |
|---|---|
| Model | ZJ2028H |
| Series | Boyuan Series |
| Material | High-Strength Aluminum Alloy |
| Standard Height | 1600mm (1.6m) |
| Retraction Ratio | 1: 0.23+0.5 |
| Structure Type | Three-Row Linkage |
Automatic Retractable Gate Features & Functions
High-Performance Propulsion System
Unmatched Power: The system features industrial-grade dual motors with a maximum power of 650W.
Extreme Climate Resilience: Engineered to operate reliably in harsh environments, with a working temperature range of -35°C to +50°C.
Precision Output: Delivers an output speed of 43.5 r/min and a high torque of 28N.m, ensuring effortless movement for heavy-duty gates.

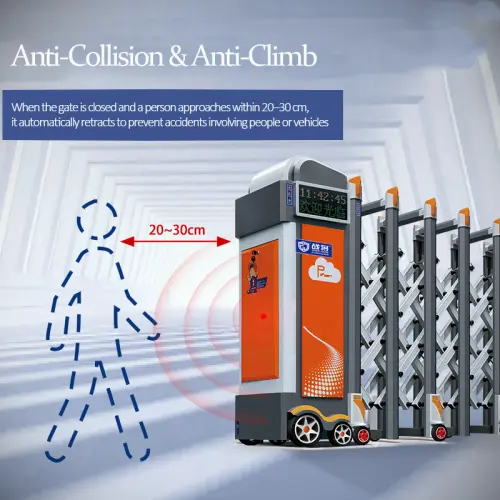

Anti-Collision Safety Protection
- Function：Anti-collision safety protection
- Detection distance：20–30 cm
- Application：Factory, school, community, industrial park, commercial entrance
- Gate type：Automatic telescopic retractable gate
- Safety feature：Infrared sensor obstacle detection

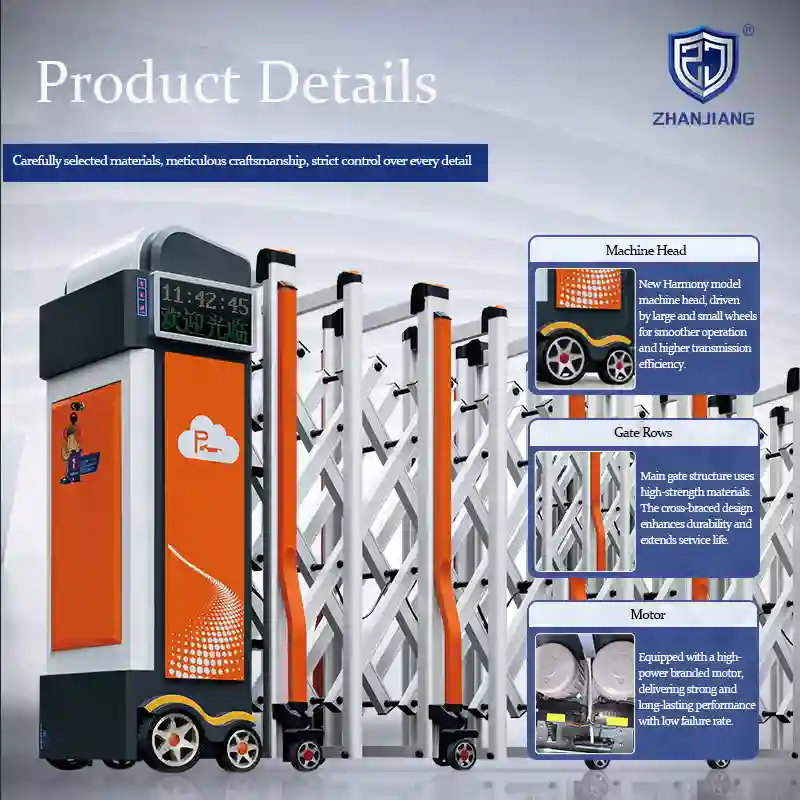

Product Details
Automatic aluminum alloy retractable gate consists of machine head, gate rows and drive motor.
Machine Head: New Harmony model machine head with matched large and small wheels, ensuring flexible movement and high transmission efficiency.
Gate Rows: Adopts high-strength aluminum materials and stable cross-braced scissor structure, improving durability and service life.
Motor: Equipped with high-quality high-power motor, stable output power, low failure rate for long-term continuous operation.
Custom size and color are available.

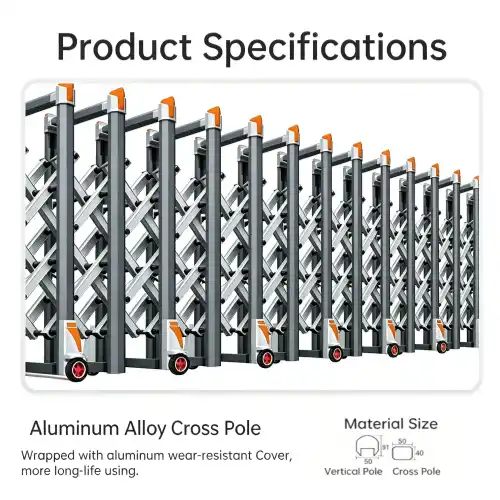

Durable Structural Components
Wear-Resistant Cross Poles: The stainless steel cross poles are wrapped with an aluminum wear-resistant cover, significantly extending the gate’s operational lifespan.

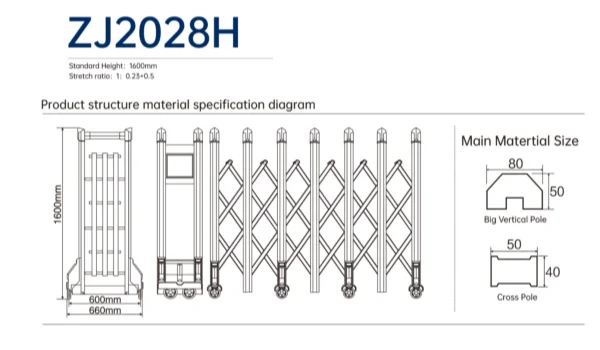

Precision Profiles:
Vertical Pole: 80mm x 51mm.
Cross Pole: 50mm x 40mm.
Retractable Outdoor Gate Pain and Solution
Industrial Entrance Solution: Solving Your Core Business Pain Points
| Business Pain Points | Our Solutions |
|---|---|
| Quality & Compliance Concerns: Overseas buyers often worry about products not meeting safety standards or having poor quality control. | CE & ISO Certified Quality: Our gates have passed CE safety certification and ISO quality management system audits, ensuring every unit meets international industrial standards. |
| Middlemen Markups & Slow Communication: Worries about high prices from trading companies and delayed technical support. | Source Factory Direct (OEM/ODM): As an original source factory, we offer one-stop R&D and manufacturing, ensuring competitive pricing and direct technical response. |
| Safety Risks in High-Traffic Areas: Concerns about collisions involving personnel or vehicles at busy factory gates. | Smart Anti-Collision System: Equipped with infrared safety sensors and auto-rebound protection to immediately stop or reverse upon detecting obstacles. |
| Non-Standard Entrance Sizes: Standard gates often fail to fit unique factory entrance widths, leading to installation headaches. | Full-Scale ODM Customization: We provide tailored height and length solutions (supporting spans over 5m) to perfectly fit any industrial park or construction site. |
| Long Lead Times & Corrosion Issues: Fears of slow shipping and material rust, leading to high long-term maintenance costs. | Rapid Delivery & Durable Materials: Using 1.5mm thick premium stainless steel and aluminum alloy; we support MOQ: 1 unit with 3-10 days fast delivery. |
Which Material to Choose for Automatic Retractable Gates?
Stainless Steel Material
- Material & Process: Made of 201/304 stainless steel; uses welding process (replacement parts require machine welding). The material is hard, durable, and offers excellent wind resistance & chemical resistance.
- Key Feature: Ultra-rugged construction, ideal for high-traffic/heavy-use scenarios (e.g., industrial parks, factories).
- Color: Stainless steel primary color (painting not recommended, as paint adhesion is poor and prone to peeling).
Aluminum Alloy Material
- Material & Process: Made of aluminum alloy; uses screw assembly process (replacement parts are easy to replace). Lifetime rust-free, perfect for chemical plants, acidic areas, coastal regions. The electrophoretic surface provides strong oxidation & corrosion resistance.
- Key Feature: Never rusts, with diverse style options to match different entrance aesthetics.
- Color: Available in black, silver, gray, red (style-dependent).

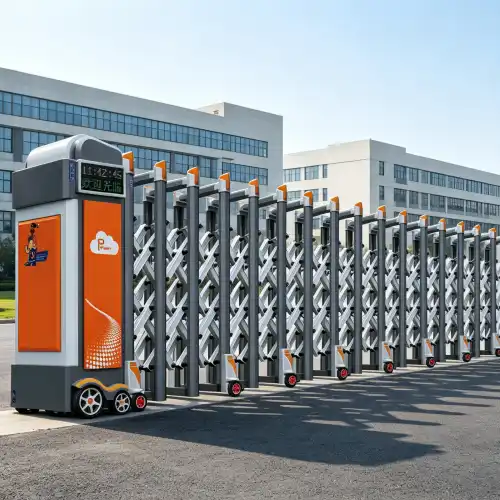

Applications of Retractable Gate Outdoor
Our electric retractable security gate fits diverse application scenarios, including industrial factories, residential compounds, school campuses, commercial parks and institutional entrances. Built for outdoor long-term use, this expandable security gate serves as a stable access control solution for driveways and main entrances. Featuring flexible telescopic structure, anti-collision safety design and optional remote automatic control, it effectively guards site security while maintaining neat, attractive exterior aesthetics. Multiple material and color options are available to match different architectural styles.
Why Choose Us as Your Retractable Gate Supplier
- Direct manufacturer without middlemen, competitive factory price
- Strict quality inspection, CE & ISO compliant
- Support full customization for engineering projects
- Rich overseas project cases: factories, schools, airport supporting projects
- Professional technical team, offer installation guidance & after-sales support
- Flexible shipping terms: EXW, FOB, CIF, DDP available
More Installation Project
Q&A
- Q: Can the retraction length of the ZJ2028H retractable gate be customized?
A: Yes, the retraction length can be customized according to actual entrance sizes. The basic retraction ratio is 1:0.23+0.5. Contact the sales team for adjustable range details.
- Q: What is the warranty period for this retractable gate? What after-sales support is provided?
A: 1-year warranty for the whole machine (2-year warranty for core components). 24/7 technical support is available. On-site installation and maintenance services are provided nationwide.
- Q: Does it support integration with ANPR, anti-collision, and other intelligent functions?
A: Yes, optional ANPR systems, anti-collision sensors, and intelligent control systems are supported. Custom integrated solutions can be designed according to requirements.
- Q: What are the advantages of aluminum alloy retractable gates compared to stainless steel ones?
A: Aluminum alloy gates are lighter in weight (lower power consumption), more corrosion-resistant (suitable for coastal/humid environments), and have a more sleek appearance.
- Q: What is the lead time? Is bulk purchasing supported?
A: Standard models are in stock with delivery within 7-15 working days; customized models take 15-30 working days depending on complexity. Bulk purchasing is supported with favorable pricing for large orders.
