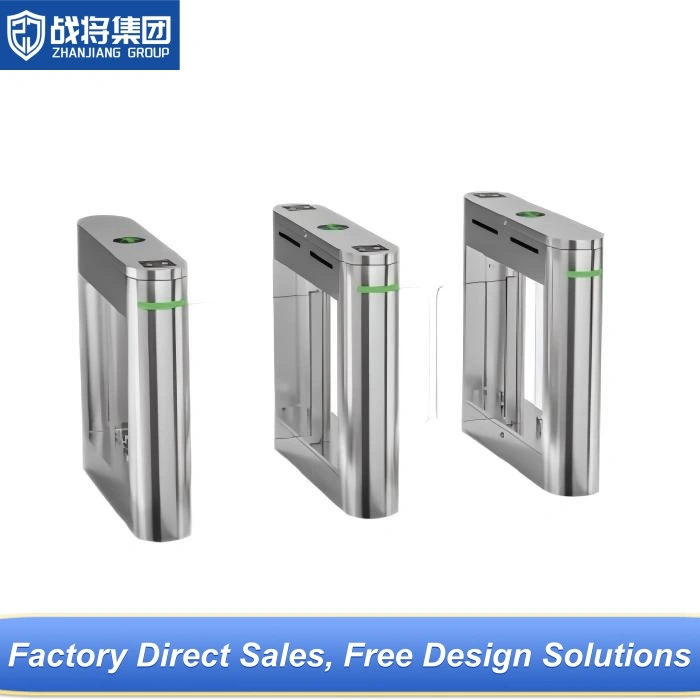

Swing Turnstile Gate
Zhanjiang Group is a professional manufacturer of full-series intelligent access control gates, including swing turnstile gates, retractable gates, cantilever sliding gates and road blockers. Our swing turnstile gate integrates mechanical structure, intelligent recognition and automatic control, widely applied to industrial parks, factory workshops, commercial buildings, office buildings, schools and station pedestrian passages.
Simply fill out the form below to receive a free customized quote, detailed product specifications, brochures, and other materials tailored to your needs.
Swing Turnstile Gate Introduction
Turnstile Gate System Advantages
- Heavy-Duty Stainless Steel Frame304 stainless steel cabinet as standard, anti-rust, anti-collision and wear-resistant, stable operation under long-term high-frequency use.
- Safe Anti-Pinch Infrared ProtectionMulti-layer infrared sensors installed on swing arms; the gate arm automatically rebounds when detecting pedestrians or obstacles to prevent clamping injuries.
- Silent Brushless Motor SystemLow noise, low power consumption, long service life, stable swing without shaking during peak traffic hours.
- All-Scenario Customization ServiceZhanjiang Group, the direct manufacturer, provides design, production and installation guidance. Single/double/multi-channel combinations are available for factories, industrial parks, office buildings, schools, hospitals and logistics warehouses.
- Global Standard CertificationsAll turnstile gates pass CE & ISO quality inspection, complete spare parts supply and technical after-sales support for overseas distributors and project contractors.
Product Specifications
1. Material & Cabinet
- Cabinet Material: Standard 304 stainless steel, optional 316 stainless steel for coastal humid areas
- Thickness: Cabinet 1.2mm, swing arm 1.5mm
- Surface Treatment: Matte wire drawing, anti-rust & anti-corrosion
2. Core Driving System
- Motor Type: Brushless silent DC motor
- Working Voltage: AC220V / AC110V customizable
- Power Consumption: Standby 10W, operating 60W
- Opening & Closing Time: 0.8s~1.5s adjustable
- Service Life: Over 5 million stable operations
3. Safety Protection Functions
- Multi-group infrared anti-pinch sensor, auto rebound when obstacles detected
- Mechanical buffer protection to avoid collision damage
- Emergency manual release for power failure evacuation
- Anti-tailgating infrared detection to prevent unauthorized follow-up

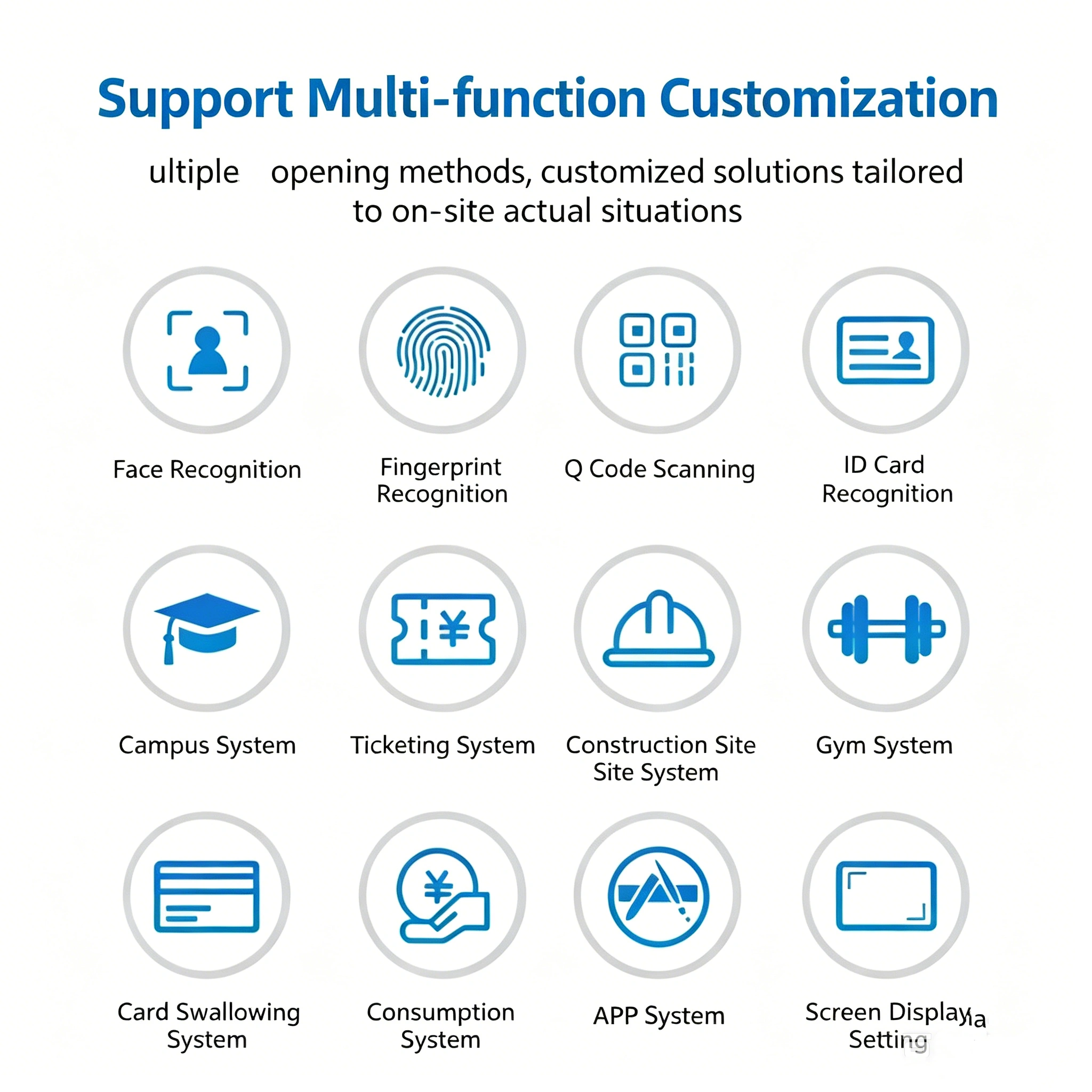

4. Access Recognition Compatibility
- Dynamic facial recognition terminal
- IC / ID card swiping reader
- QR code scanner for temporary visitors
- ID card recognition module
5. Passage Mode
- Support one-way / two-way traffic switchable via control board
- Single channel, double channel and multi-channel combined layout available
- Standard single passage width: 600mm, customized width up to 900mm
6. Working Environment
- Operating Temperature: -30℃ ~ +65℃
- Waterproof Grade: IP54, suitable for indoor and semi-outdoor use
- Noise Level: ≤55dB during operation
- Relative Humidity: 0~90% non-condensing
Applications of Swing Turnstile Gate Barrier System
As a leading security solution, the Swing Barrier Turnstile Gate by Zhanjiang Group is designed for versatile environments where both high aesthetics and rigorous access control are required. Below are the primary application scenarios for the swing turnstile barrier:
Upscale Corporate & Office Buildings The sleek SUS304 stainless steel design of the Swing Barrier Turnstile Gate seamlessly integrates into luxury lobbies, enhancing the professional corporate image.
ADA Compliant & VIP Access Lanes Due to its adjustable arm length (600mm–900mm+), the Swing Barrier Turnstile Gate is the premier choice for creating wide VIP lanes and ensuring full ADA compliance for wheelchair accessibility.
High-Traffic Commercial Hubs With a Mean Time Between Failures (MTBF) exceeding 5 million cycles, this swing turnstile barrier is engineered to handle the continuous pedestrian flow found in shopping malls and commercial centers.
Industrial Parks & Manufacturing Facilities Equipped with a high-performance brushless DC motor, the Swing Barrier Turnstile Gate ensures 24/7 stable operation and long-term durability in demanding industrial environments.
Specialty Environments (Low Temperature & Outdoor) The Swing Barrier Turnstile Gate is built to perform in temperatures as low as -10°C and is suitable for semi-outdoor applications under a canopy.
Emergency & High-Security Zones For facilities requiring rapid evacuation, the swing turnstile barrier features an automatic “Emergency Open” mode during power outages. Its intelligent sensors also provide real-time tailgating detection to prevent unauthorized entry.
Why Choose Swing Gate Turnstile?
- Intelligent turnstile gates upgrade the security, intelligence, efficiency and unmanned operation of entrance and exit access control, cut down management costs in the long run and adapt to the control requirements of various application scenarios, serving as a high cost-effective solution to replace traditional manual attendance and simple access control systems.
- Turnstile gates and professional turnstile access control equipment are applicable to industrial parks, factory workshops, commercial office buildings, scenic spots, transportation stations, residential communities and other scenarios, and can accurately resolve core pain points including unregulated passage of people and vehicles, critical access control loopholes, low operational management efficiency and exorbitant labor costs for manual monitoring.
Contact us to design a free solution
Turnstile Gate
Intelligent Entrance Solution: Solving Your Core Business Pain Points
| Business Pain Points | Our Solutions |
|---|---|
| Uncontrolled tailgating & unauthorized entry leading to security breaches | Full-height anti-tailgating turnstiles + AI video recognition, accurately intercepting illegal access and eliminating security loopholes |
| Low passage efficiency & congestion in high-traffic scenarios | High-speed flap/speed gates supporting face/QR code verification, delivering up to 30 persons per minute per channel |
| Frequent equipment damage & high maintenance costs in harsh outdoor/industrial environments | 304/316 stainless steel construction with IP65+ waterproof/dustproof rating, shock-resistant design for long-term durability |
| Low efficiency & high labor costs of manual attendance/access control | Integrated intelligent turnstile system with automatic attendance & access data reporting, reducing manual intervention by 80% |
| Poor equipment adaptability to diverse scenarios (e.g., industrial parks, office buildings) | Customizable channel width, material & functions: wide shock-resistant channels for industrial use, low-noise stylish designs for commercial spaces |
| High operational noise disrupting office/commercial environments | Silent movement core + shock-absorbing structure, ensuring noise levels <50dB for a comfortable experience |
