ANPR Automatic Retractable Gate
Product Introduction

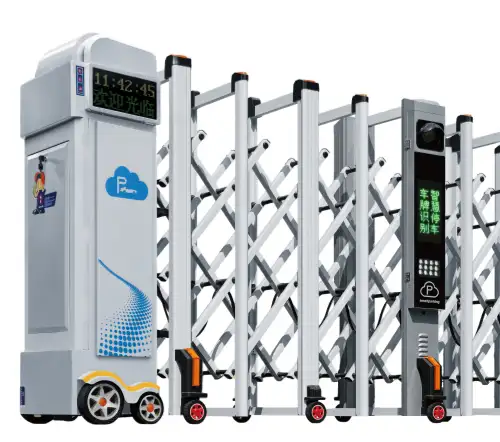

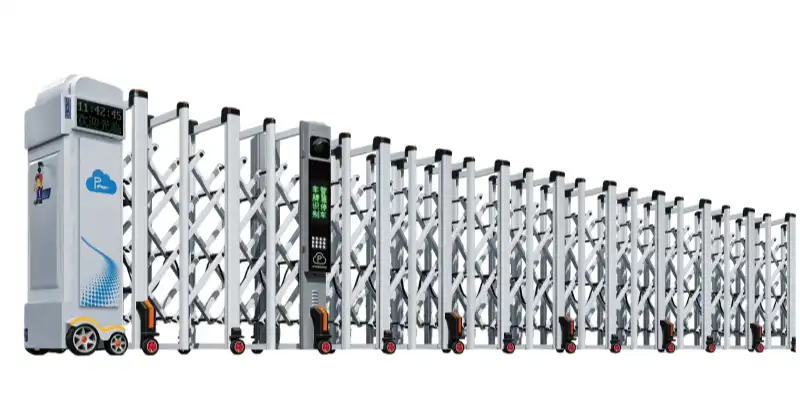

Automatic Retractable Gate with License Plate Recognition
Designed for modern commercial parks, enterprises, and smart communities, this automatic retractable gate seamlessly integrates high-efficiency license plate recognition technology with a robust, stable telescopic structure. It delivers frictionless “sensorless access” for authorized vehicles while providing reliable safety protection, making it the ultimate choice to boost entrance management efficiency and elevate your property’s brand image.
Automatic retractable Gate Description
Application scenarios
This smart retractable gate is the ideal solution for government institutions, factory compounds, commercial plazas, luxury villas, and high-end residential areas where security, efficiency, and aesthetic design are paramount.
- Recognition Speed: ≤ 0.3s
- Material: High-Grade Aluminum Alloy
- Surface Treatment: High-Temperature Spray Plastic
- Working Temperature: -30°C ~ 80°C
- Protection Grade: IP54 (Water & Dust Resistant)
Product Specifications
- Automatic retractable gate body: single track, trackless mode optional
- Automatic retractable gate motor: 420W high-power motor, high stability, large output torque, adapts to frequent forward and reverse rotation, compact structure, built-in thermal protection device, effectively prolonging motor service life
- Applicable scene: Suitable for flat concrete ground (no obvious steps, potholes or slopes on the ground)
- Gate body structure: Main body assembled with high-strength aluminum alloy profiles, equipped with wear-resistant nylon rubber pads and PV sleeves

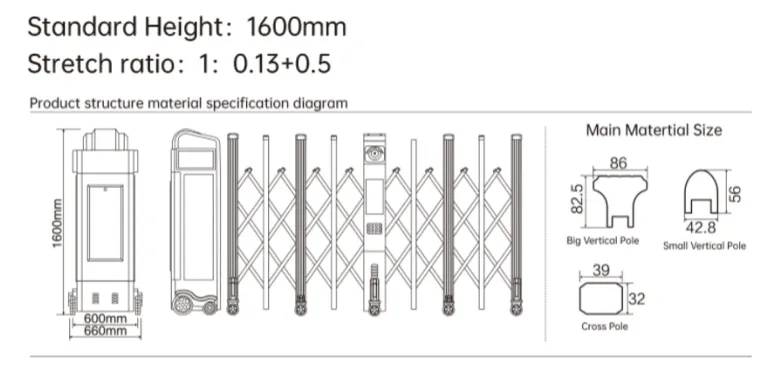

- Main material specifications:
- Big Vertical Pole: 86×82.5mm, optional thickness 1.2mm
- Small Vertical Pole: 42.8×56mm, 1.0mm thick octagonal olive seed structure
- Cross Pole: 39×32mm
- Machine head main material: 3.0mm thick aluminum alloy
- Head width: 680mm
- Overall width of the gate: 740mm
- Gate length: 550mm
- Empty gate spacing: 440mm
- Standard Height: 1600mm
- Stretch ratio: 1: 0.13+0.5
- Buffer & protection device: Equipped with electronic soft start and mechanical buffer device, ensuring smooth operation without shaking during opening and closing
- Motor protection: Built-in overheating and over-travel protection devices. When the motor runs continuously and reaches a set temperature, it will automatically cut off power and enter protection state to extend service life
- Manual clutch: Motor equipped with manual clutch. In case of power failure or maintenance, the clutch can be opened with a manual key, and the gate can be pushed manually
- Compatible smart access systems: ①Access control (fingerprint, password, card swiping) ②ANPR (License Plate Recognition) ③Face recognition ④Bluetooth identification ⑤Mobile APP control, etc.
- Material: High-strength aluminum alloy retractable gate, anti-rust and corrosion-resistant
- Integrated license plate recognition system: Equipped with high-definition smart camera, supports 24/7 fast and accurate license plate recognition, realizing sensorless automatic access control
Automatic Retractable Gate Features & Functions
High-Performance Propulsion System
Unmatched Power: The system features industrial-grade dual motors with a maximum power of 650W.
Extreme Climate Resilience: Engineered to operate reliably in harsh environments, with a working temperature range of -35°C to +50°C.
Precision Output: Delivers an output speed of 43.5 r/min and a high torque of 28N.m, ensuring effortless movement for heavy-duty gates.
Integrated Motor Box Architecture
Advanced Control: Equipped with the Latest Control System for intelligent command processing and multi-device compatibility.
Refined Engineering: Features a Hidden wire trough for a cleaner internal layout and protection against wire wear.
Industrial Transmission: Utilizes Smooth Gearwheels and high-end chains for low-friction, noise-reduced operation.
Structural Stability: Built on a Stainless Steel Bottom Plate and reinforced with a Windproof Grounding Device to withstand high-velocity winds.
Intelligent Display & Aesthetics
Dynamic Communication: An Energy-conservation LED Display is integrated into the pillar to show rolling “Welcome” messages or alerts.
Smart Visibility: The circular illuminated border provides high visibility during night-time operation while maintaining low power consumption.
Durable Structural Components
Wear-Resistant Cross Poles: The stainless steel cross poles are wrapped with an aluminum wear-resistant cover, significantly extending the gate’s operational lifespan.
Precision Profiles:
Vertical Pole: 51mm x 50mm.
Cross Pole: 39mm x 32mm.
Automatic Retractable Gate with ANPR:
Industrial Entrance Solution
Industrial Entrance Solution: Solving Your Core Business Pain Points
Which Material to Choose for Automatic Retractable Gates?
Stainless Steel Material
- Material & Process: Made of 201/304 stainless steel; uses welding process (replacement parts require machine welding). The material is hard, durable, and offers excellent wind resistance & chemical resistance.
- Key Feature: Ultra-rugged construction, ideal for high-traffic/heavy-use scenarios (e.g., industrial parks, factories).
- Color: Stainless steel primary color (painting not recommended, as paint adhesion is poor and prone to peeling).
Aluminum Alloy Material
- Material & Process: Made of aluminum alloy; uses screw assembly process (replacement parts are easy to replace). Lifetime rust-free, perfect for chemical plants, acidic areas, coastal regions. The electrophoretic surface provides strong oxidation & corrosion resistance.
- Key Feature: Never rusts, with diverse style options to match different entrance aesthetics.
- Color: Available in black, silver, gray, red (style-dependent).
