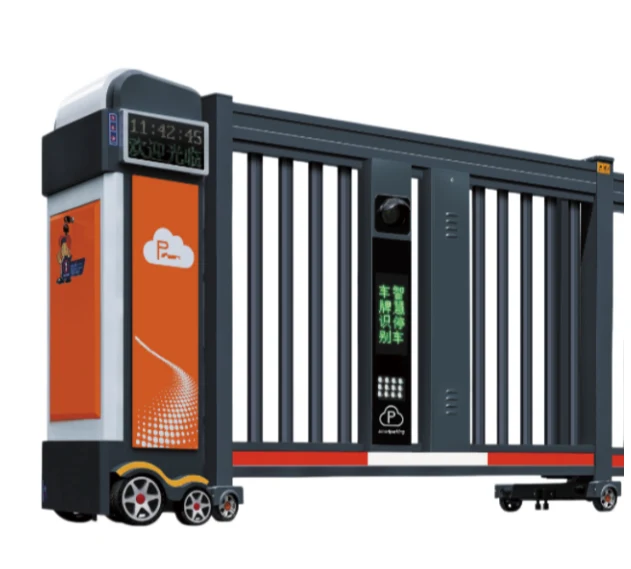

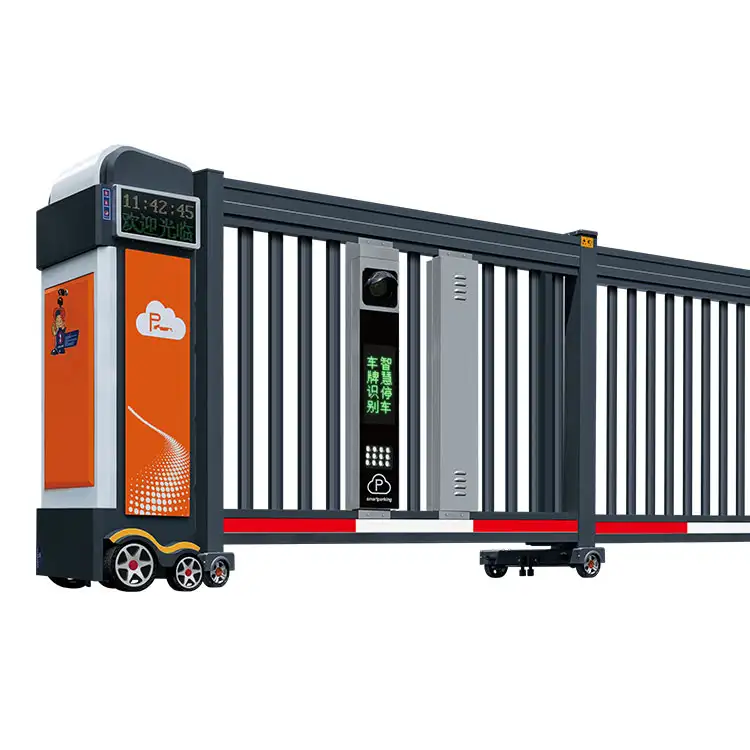

ANPR Telescopic Sliding Gate
Product Introduction
The ANPR Telescopic Sliding Gate is an intelligent security access control system that deeply integrates a multi-segment telescopic sliding gate with a high-definition license plate recognition system. The gate employs a segmented, overlapping sliding structure, occupying minimal lateral space when open. Combined with ANPR, it enables seamless automatic passage without requiring stopping to swipe or retrieve a card. It also links with access control, gate systems, and surveillance to complete permission verification and recording, making it an efficient and secure vehicle access solution for space-constrained scenarios.
Response within 24h | Fully Customized | 100% Free & No Commitment
Telescopic Sliding Gate Description
Main Application Scenarios:
Industrial parks, factories, schools and universities, government facilities, railway and bus stations, airports, hospitals, and other commercial or public facilities.
Gate Body: High-strength aluminum alloy/carbon steel profiles, hot-dip galvanized and electrostatically powder-coated for corrosion resistance, wind resistance, and impact resistance; multi-segment nested tracks ensure smooth and noiseless operation; customizable grid and enclosed panels are available, with height and width adjustable as needed.
Drive System: DC brushless motor with overheat, overload, and phase loss protection; manual clutch for emergency opening in case of power failure; electronic soft start + mechanical buffer to prevent impact.
ANPR Recognition Unit: High-definition industrial camera + AI algorithm, supporting daytime/nighttime/rain/fog/backlight environments with a recognition accuracy of 99.8%+; compatible with blue/yellow/green license plates and new energy vehicle license plates; whitelist and blacklist settings allow for linked opening/closing.
Safety and Control System: Triple protection with infrared beams, anti-pinch rubber strips, and induction coils; PLC control supports remote management, data export, and fault alarms; optional integration of RFID, facial recognition, and remote door opening via mobile app.
Product Specifications

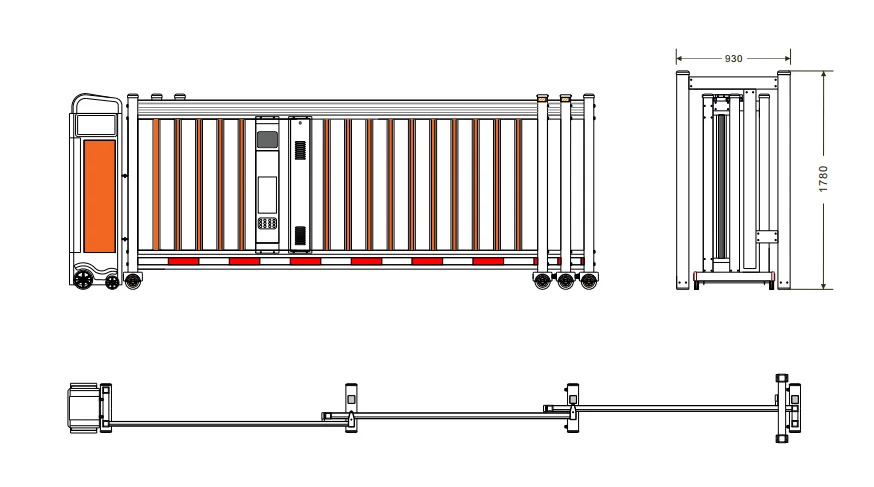

Technical Specifications
| Item | Specification |
|---|---|
| Gate Height | 1600 mm |
| Gantry Height | 1780 mm |
| Material | High-grade Aluminum Alloy 6063-T5 (high strength, corrosion-resistant) |
| Opening Type | Electric Telescopic Sliding |
| Control Method | Remote Control + ANPR + Mobile APP + Loop Detector |
- Gate Height: 1600 mm
- Gantry Height: 1780 mm
- Material: High-grade Aluminum Alloy 6063-T5 (corrosion-resistant, high strength)

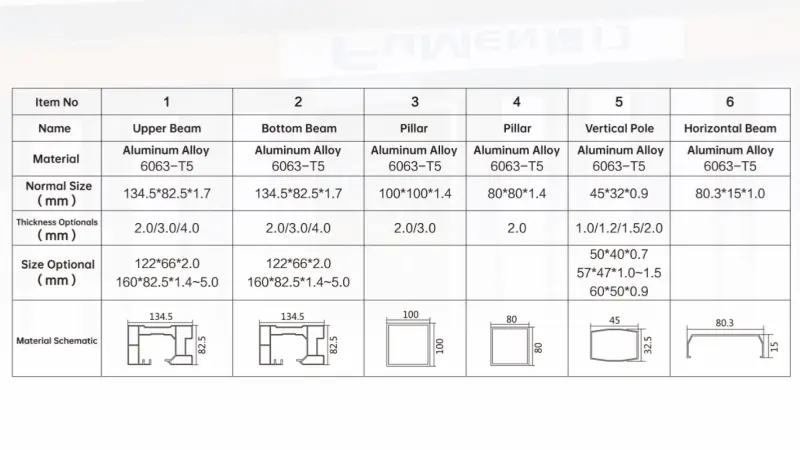

- Profile Specifications:
- Top Rail: 134.582.51.7 mm (optional thickness: 2.0/3.0/4.0 mm)
- Bottom Rail: 134.582.51.7 mm (optional thickness: 2.0/3.0/4.0 mm)
- Post 1: 1001001.4 mm (optional thickness: 2.0/3.0 mm)
- Post 2: 80801.4 mm (optional thickness: 2.0 mm)
- Vertical Bar: 57471.0~1.5 mm (optional thickness: 1.0~2.0 mm)
- Cross Bar: 80.3151.0 mm
- ANPR System:
- Recognition Accuracy: ≥99.8%
- Recognition Speed: ≤0.3 sec per vehicle
- License Plate Types: Compatible with blue, yellow, new energy plates
- Operating Environment: -20℃ ~ 60℃, IP66 waterproof & dustproof
- Access Speed: <3 sec per vehicle (hands-free entry)
- Drive & Safety:
- Brushless DC motor with overload/overheat protection
- Manual release for power failure
- Triple safety: infrared sensors, anti-pinch rubber, loop detector
- Control: PLC + remote control + APP + ANPR integration
ANPR Telescopic Sliding Gate Features & Functions
High-power motor
Our telescopic sliding gate is equipped with a high-power motor, which delivers strong, stable driving force. It can smoothly operate even for ≥5m large-span telescopic sliding gates, and maintains reliable performance under frequent opening/closing in high-traffic scenarios (factories, industrial parks). This reduces motor failure risks and lowers long-term maintenance costs.
High-density aluminum
The gate body uses high-density aluminum profile: it balances lightweight design with high structural strength, and has excellent rust/corrosion resistance. Adaptable to diverse outdoor climates (humidity, salt spray), it effectively extends the telescopic sliding gate’s service life and cuts replacement costs for buyers.
Intelligent infrared sen device
Equipped with an intelligent infrared sensor device, our telescopic sliding gate detects obstacles in real time during operation — avoiding clamping or collision risks to ensure safe access. The integrated “WELCOME” display also enhances the entrance/exit management experience.

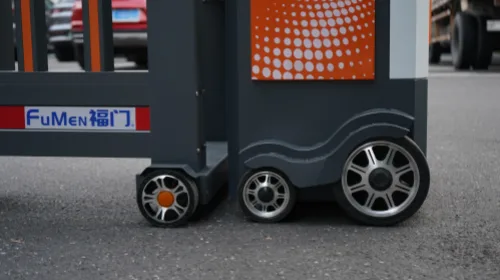

Running smooth System
With a precision pulley & guide rail structure, the telescopic sliding gate operates smoothly (no jamming or loud noise). This design minimizes component wear, allowing the gate to stay stable and efficient even after long-term continuous use.
ANPR Telescopic Sliding Gate
Industrial Entrance Solution: Solving Your Core Business Pain Points
| Pain Point | Solution |
|---|---|
| Insufficient space for traditional sliding gates | Multi-panel telescopic design: Only 1/3~1/2 of the gate width is needed for lateral storage, perfectly fitting narrow passages and maximizing site utilization. |
| Vehicle queuing and low efficiency | Integrated ANPR system: Authorized vehicles pass without stopping; 0.3s fast recognition, automatic gate opening, average access time <3 seconds for hands-free entry. |
| Cumbersome manual management and untraceable data | Smart access control: Whitelist/blacklist settings, automatic recording of license plates and access time, data exportable for querying, replacing manual guarding and reducing costs. |
| Harsh outdoor environment and frequent equipment failures | 6063-T5 aluminum alloy gate body: Hot-dip galvanized + electrostatic spraying for corrosion and impact resistance; ANPR system with IP66 protection, stable operation at -20℃~60℃, ≥99.8% recognition accuracy in rain/fog/backlight. |
| Insufficient safety protection and high accident risks | Triple safety protection: Infrared sensors + anti-pinch rubber strips + loop detectors; automatic stop/reverse when obstacles are detected; motor with overload/overheat protection to prevent equipment damage and injuries. |
Which Material to Choose for Automatic Retractable Gates?
Stainless Steel Material
- Material & Process: Made of 201/304 stainless steel; uses welding process (replacement parts require machine welding). The material is hard, durable, and offers excellent wind resistance & chemical resistance.
- Key Feature: Ultra-rugged construction, ideal for high-traffic/heavy-use scenarios (e.g., industrial parks, factories).
- Color: Stainless steel primary color (painting not recommended, as paint adhesion is poor and prone to peeling).
Aluminum Alloy Material
- Material & Process: Made of aluminum alloy; uses screw assembly process (replacement parts are easy to replace). Lifetime rust-free, perfect for chemical plants, acidic areas, coastal regions. The electrophoretic surface provides strong oxidation & corrosion resistance.
- Key Feature: Never rusts, with diverse style options to match different entrance aesthetics.
- Color: Available in black, silver, gray, red (style-dependent).
Stainless Steel VS Aluminum Alloy: Which Is Right For Your Project?
| Comparison Item | Stainless Steel | Aluminum Alloy |
|---|---|---|
| Core Feature | High hardness, superior impact resistance | Lightweight, natural anti-rust & elegant aesthetic |
| Weather Resistance | Good rust-proof; maintenance needed in humid areas | Excellent corrosion resistance, ideal for coastal areas |
| Operation Performance | Heavy-duty, excellent stability in high winds | Smooth, quiet & rapid telescopic movement |
| Surface & Color | Classic metallic silver finish | Support various powder coating colors |
| Best For | Factories, logistics parks, industrial zones | Coastal projects, villas, commercial buildings |
For heavy industrial use and high impact demand, Stainless Steel is the most cost-effective choice.
For long-term outdoor use (especially near the sea) and premium look, Aluminum Alloy is the ideal solution.
More Installation Project Case
FAQ - ANPR Telescopic Sliding Gate
What is an ANPR Telescopic Sliding Gate and its key advantage?
An ANPR Telescopic Sliding Gate is an intelligent security system that integrates High-Definition License Plate Recognition with a multi-segment gate body. Its primary advantage is the overlapping sliding structure, which requires minimal lateral space when open, making it ideal for space-constrained entrances.
How does the ANPR system improve traffic efficiency?
The system links with access control to enable seamless automatic passage without requiring vehicles to stop for swiping cards or retrieving tickets. This significantly speeds up vehicle flow and reduces congestion at security checkpoints.
Does the telescopic design affect the gate's durability?
Not at all. Our telescopic gates are engineered with robust segmented structures to ensure long-term reliability. The design balances compactness with smooth, stable operation, maintaining high security and safety levels.
Does the system support security surveillance and recording?
Yes. The system provides integrated surveillance and recording for complete permission verification. It maintains a detailed log of vehicle entries, providing a secure and efficient access solution for sensitive areas.
Can I customize the gate for specific dimensions or features?
We provide 100% free and no-commitment customization services to suit your specific site requirements. We respond to inquiries within 24 hours to provide a fully tailored quote and technical solution.
