Swing Barrier Turnstile Gate
As a leading manufacturer of Turnstile Gate in China, we boast 10 years of extensive production experience. We are proud to present the Zhanjiang Group Swing Barrier Turnstile Gate—a secure, automated entry solution specifically designed for high-traffic commercial areas, office buildings, and industrial facilities.
Combining robust structural integrity with intelligent access control systems, these gates effectively streamline entry management while reducing operational costs for your premises. Whether you are an end-user in urgent need of a reliable entrance system or a commercial distributor seeking premium products, please contact us immediately.
Simply fill out the form below to receive a free customized quote, detailed product specifications, brochures, and other materials tailored to your needs.
Turnstile Gate Introduction
Secure any premises with state-of-the-art Turnstile Gate systems. As one of the most effective methods for controlling pedestrian traffic, these access control systems utilize card-swiping or facial recognition technology to mitigate security risks and ensure unauthorized individuals remain off-site. Designed for high-traffic environments, these gates provide a robust physical barrier while maintaining a smooth flow for authorized personnel, with flexible configurations for both one-way and two-way passage.
The comprehensive product range—including Tripod, Swing, and Flap barriers—is engineered to balance sophisticated aesthetics with uncompromising security. Whether the requirement is for the sleek profile of a Swing Barrier in a luxury lobby or a heavy-duty Full-Height Turnstile for maximum perimeter security, these solutions offer the perfect blend of durability, intelligence, and modern design to protect assets 24/7.
Features
- Superior Accessibility
- Ideally suited for VIP lanes and ADA compliance.
- Adjustable passageway widths ensure that pedestrians, wheelchairs, and bulky luggage can pass through smoothly and comfortably.
- Advanced Safety Protection
- Equipped with real-time tailgating detection and intelligent anti-pinch logic to prioritize user safety.
- Features built-in high-precision sensors and an automatic “Emergency Open” mode to ensure rapid and safe evacuation during power outages or emergencies.
- Industrial-Grade Durability
- Constructed from premium SUS304 stainless steel for long-lasting performance.
- The system features a Mean Time Between Failures (MTBF) exceeding 5 million cycles.
- Equipped with high-performance brushless motors to ensure stable operation even in the most demanding high-frequency environments.

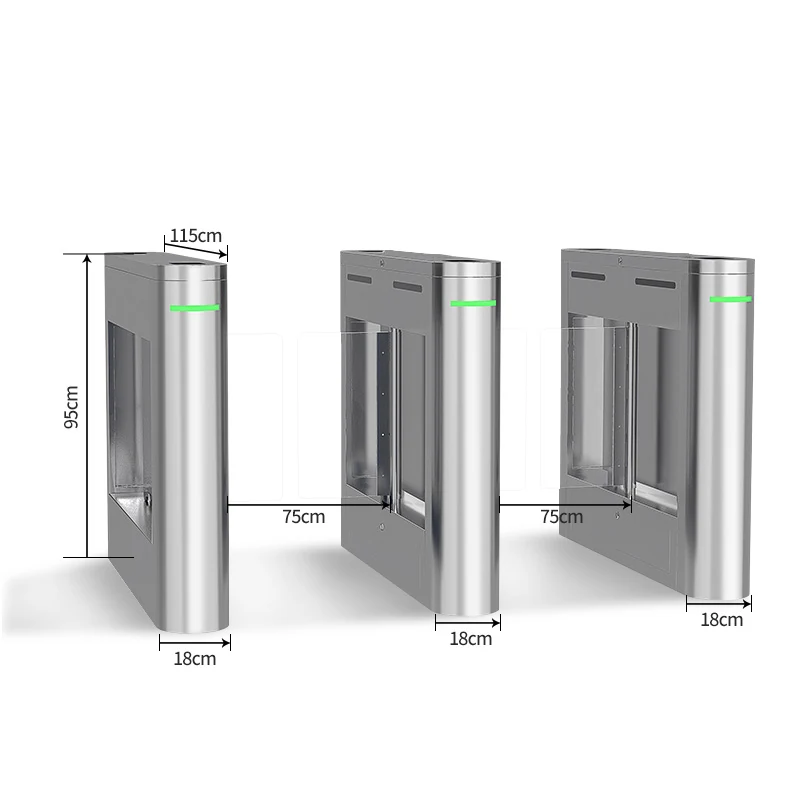

Product Specifications
Chassis Material: High-quality stainless steel, specifically 304 stainless steel.
Chassis Dimensions: 1200L × 280W × 1000H (mm).
Swing Arm Length: Adjustable between 600mm and 900mm.
Swing Angle: 180 degrees.
Swing Direction: Supports both unidirectional and bidirectional passage.
Drive Motor: Powered by a 24V brushless DC motor.
Opening/Closing Speed: Efficient operation ranging from 2 to 3 seconds.
Operating Voltage: AC 220 ± 10% V / 50 ± 10% Hz.
Communication Interface: Uses standard RS485 with a transmission distance of up to 1200 meters.
Device Weight: 45 kg.
LED Indicators: Equipped with 1 unit for visual guidance.
Operating Environment: Suitable for indoor use or outdoor use with a canopy.
Temperature Range: Designed to operate at a minimum of -10°C.
Startup and Reset: Reaches operational status approximately 6 seconds after power-on and features a 10-second automatic reset time following a failure.
Applications of Swing Barrier Turnstile Gate
As a leading security solution, the Swing Barrier Turnstile Gate by Zhanjiang Group is designed for versatile environments where both high aesthetics and rigorous access control are required. Below are the primary application scenarios for the swing turnstile barrier:
Upscale Corporate & Office Buildings The sleek SUS304 stainless steel design of the Swing Barrier Turnstile Gate seamlessly integrates into luxury lobbies, enhancing the professional corporate image.
ADA Compliant & VIP Access Lanes Due to its adjustable arm length (600mm–900mm+), the Swing Barrier Turnstile Gate is the premier choice for creating wide VIP lanes and ensuring full ADA compliance for wheelchair accessibility.
High-Traffic Commercial Hubs With a Mean Time Between Failures (MTBF) exceeding 5 million cycles, this swing turnstile barrier is engineered to handle the continuous pedestrian flow found in shopping malls and commercial centers.
Industrial Parks & Manufacturing Facilities Equipped with a high-performance brushless DC motor, the Swing Barrier Turnstile Gate ensures 24/7 stable operation and long-term durability in demanding industrial environments.
Specialty Environments (Low Temperature & Outdoor) The Swing Barrier Turnstile Gate is built to perform in temperatures as low as -10°C and is suitable for semi-outdoor applications under a canopy.
Emergency & High-Security Zones For facilities requiring rapid evacuation, the swing turnstile barrier features an automatic “Emergency Open” mode during power outages. Its intelligent sensors also provide real-time tailgating detection to prevent unauthorized entry.
Why ChooseTurnstile Gate?
- Intelligent turnstile gates upgrade the security, intelligence, efficiency and unmanned operation of entrance and exit access control, cut down management costs in the long run and adapt to the control requirements of various application scenarios, serving as a high cost-effective solution to replace traditional manual attendance and simple access control systems.
- Turnstile gates and professional turnstile access control equipment are applicable to industrial parks, factory workshops, commercial office buildings, scenic spots, transportation stations, residential communities and other scenarios, and can accurately resolve core pain points including unregulated passage of people and vehicles, critical access control loopholes, low operational management efficiency and exorbitant labor costs for manual monitoring.
How to Choose the Right Turnstile Gates | ZhanJiang Group
Choose turnstiles by crowd, space and security level: full-enclosed anti-tailgating for high-security sites, shock-resistant wide-channel for industrial areas, low-noise stylish models for commercial/office spaces, cost-effective high-flow for public areas, and compact precise-verification units for small spaces.
Pick the optimal type to avoid redundant costs: tripod turnstiles (parks/sites), swing turnstiles (factories/logistics), flap turnstiles (offices/malls), speed gates (premium spaces), and full-height turnstiles (maximum security).
Opt for functions that fit your needs: basic IC/QR or advanced face/fingerprint verification, smart system integration, and IP65+ waterproof/anti-pinch protection.
Leverage Zhanjiang Group’s strengths: customized turnstile solutions, durable 304/316 stainless steel construction, 1–3 year warranties, and CE/IFO certification for global use.
Contact us to design a free solution
Turnstile Gate
Intelligent Entrance Solution: Solving Your Core Business Pain Points
| Business Pain Points | Our Solutions |
|---|---|
| Uncontrolled tailgating & unauthorized entry leading to security breaches | Full-height anti-tailgating turnstiles + AI video recognition, accurately intercepting illegal access and eliminating security loopholes |
| Low passage efficiency & congestion in high-traffic scenarios | High-speed flap/speed gates supporting face/QR code verification, delivering up to 30 persons per minute per channel |
| Frequent equipment damage & high maintenance costs in harsh outdoor/industrial environments | 304/316 stainless steel construction with IP65+ waterproof/dustproof rating, shock-resistant design for long-term durability |
| Low efficiency & high labor costs of manual attendance/access control | Integrated intelligent turnstile system with automatic attendance & access data reporting, reducing manual intervention by 80% |
| Poor equipment adaptability to diverse scenarios (e.g., industrial parks, office buildings) | Customizable channel width, material & functions: wide shock-resistant channels for industrial use, low-noise stylish designs for commercial spaces |
| High operational noise disrupting office/commercial environments | Silent movement core + shock-absorbing structure, ensuring noise levels <50dB for a comfortable experience |

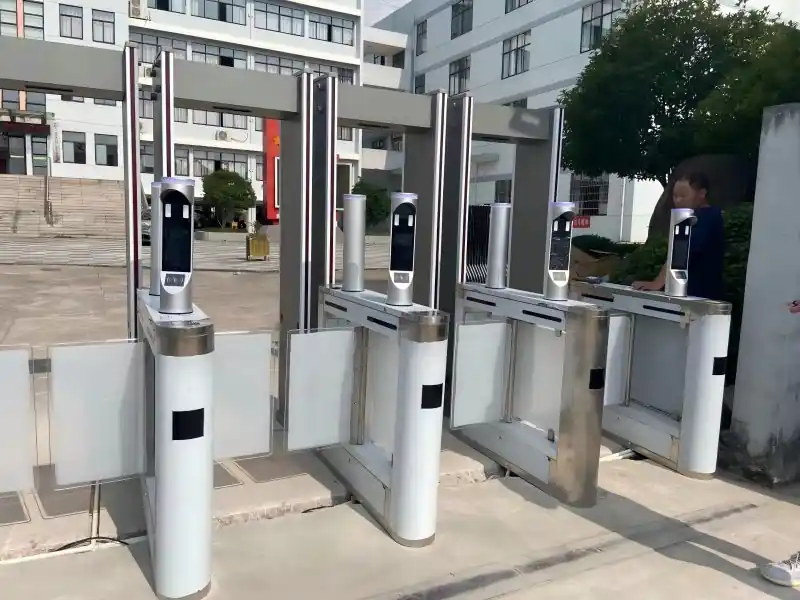

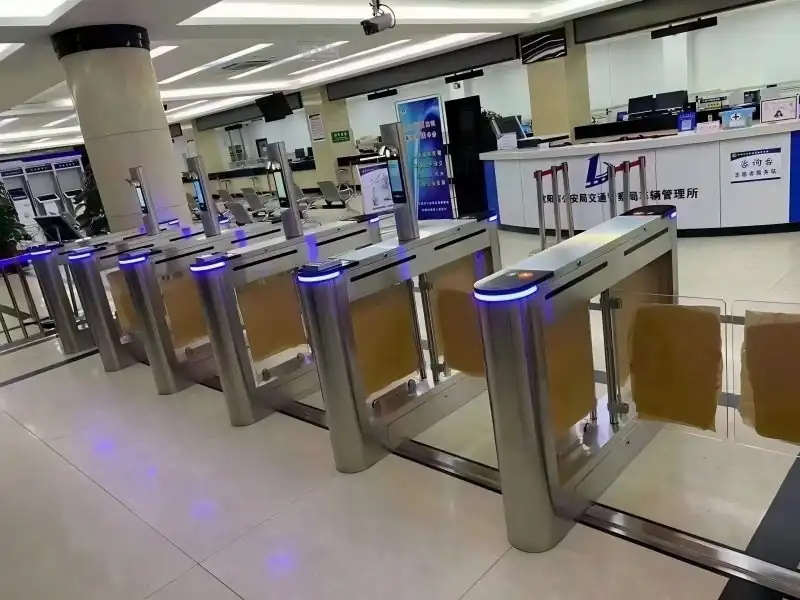

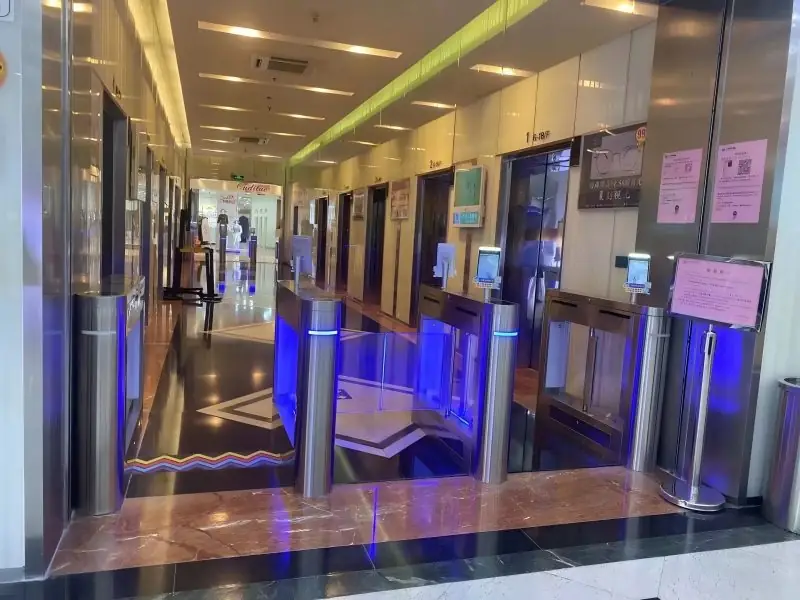

More Installation Project
