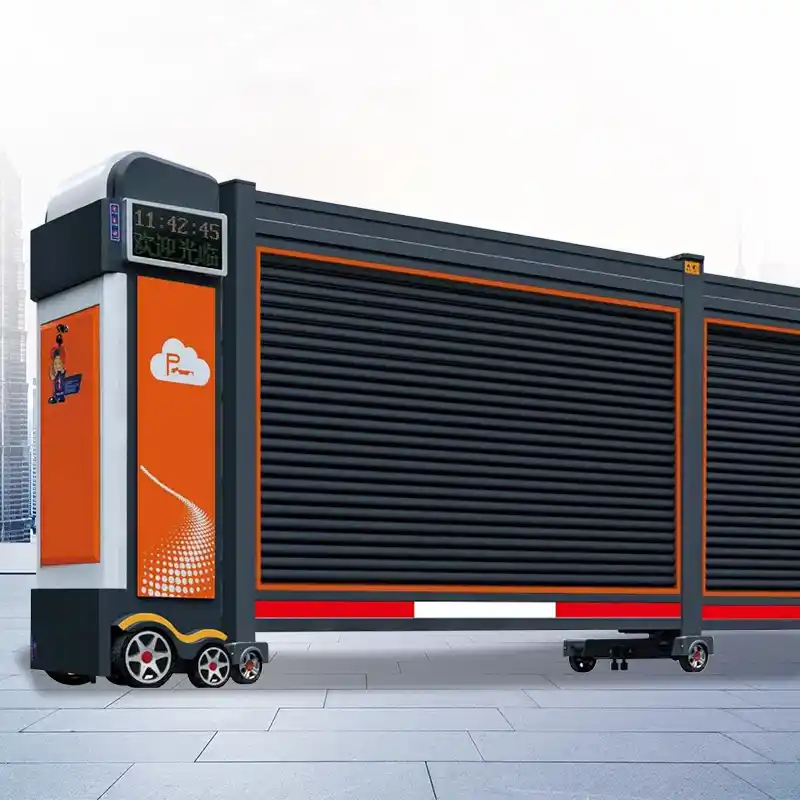

Louver Telescopic Sliding Gate
Product Introduction
The Louver Telescopic Sliding Gates is a high-end intelligent sliding gate designed for industrial parks, factories, residential communities, schools, and logistics hubs. It features a segmented structure and louvered panel design, combining modern aesthetics with reliable security and stable operation.
Please share your requirements and detailed information with us.We will quote for you within 24 hours!
Need a customized entrance solution? Contact our engineering team for a free site assessment and CAD design.
Louver Telescopic Sliding Gate Description
Our Louvered Telescopic Sliding Gates are the ultimate solution for high-traffic entrances with limited runoff space. Engineered with a multi-section synchronized drive system, these gates provide maximum opening widths while requiring only a fraction of the retraction area of a standard sliding gate. The integrated louvered panels offer a perfect balance of high-level privacy, wind-flow management, and modern architectural aesthetics.
Core Features & Benefits:
Ultra-Compact Retraction: The multi-section linear structure allows the gate to stack neatly in tight spaces, making it ideal for facilities where a traditional single-panel gate would be blocked by walls or structures.
Engineered for High-Frequency Use: Featuring a precision-linked synchronized mechanism and heavy-duty reinforced steel/aluminum frames, our gates ensure smooth, continuous operation in logistics hubs, schools, and industrial parks.
Premium Louvered Design: Beyond its sleek appearance, the louvered panel provides superior privacy, dust-proofing, and sound insulation while maintaining structural integrity against high wind loads.
Intelligent Automation Ready: Fully compatible with LPR (License Plate Recognition), RFID access, and safety sensor systems, enabling seamless integration into your existing site security infrastructure.
Corrosion-Resistant Durability: Finished with high-quality powder coating, our gates are built to withstand harsh weather conditions, ensuring long-term performance with minimal maintenance costs.
Product Specifications
| Feature | Specification |
| Gate Span | 6m to 20m+ (Fully Customizable) |
| Material | High-Grade Galvanized Steel or T6 Aluminum Alloy |
| Panel Type | Modern Louvered (Privacy-First Design) |
| Drive System | Multi-Section Synchronized Telescopic Drive |
| Finish | Weather-Resistant Powder Coating (RAL Colors Available) |
| Applications | Factories, Ports, Logistics Centers, Commercial Complexes |
With a Standard Height of 1.6m and a Gantry Height of 1.78m, these systems provide a formidable perimeter. Whether you need a standard entrance or a massive industrial opening, we offer customizable spans from 6m to over 20m, tailored to your site’s specific requirements.

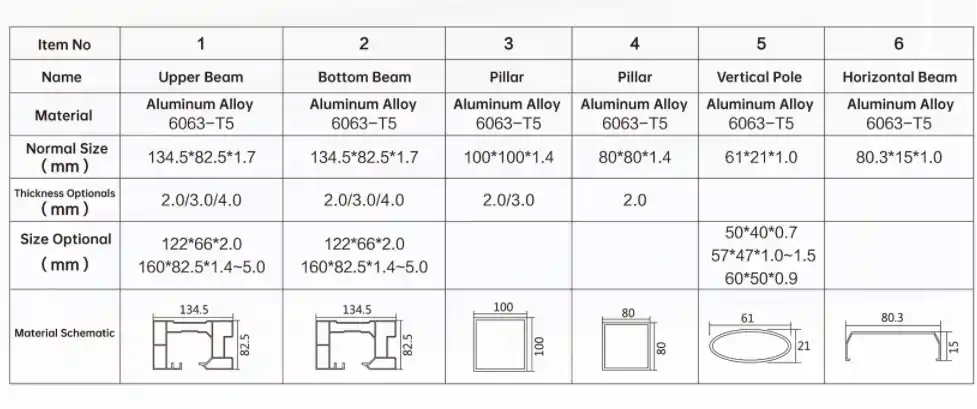

Heavy-Duty Structural Framework
The core stability of the gate is supported by a precision-engineered beam and pillar system:
Main Beams (Upper & Bottom): Features a robust standard profile of 134.5 x 82.5 x 1.7 mm. For high-traffic or high-wind environments, we provide enhanced thickness options of 2.0 mm, 3.0 mm, and 4.0 mm, as well as alternative sizes up to 160 x 82.5 mm for maximum structural rigidity.
Reinforced Pillar Support: The system utilizes a 100 x 100 mm Main Pillar (up to 3.0 mm thickness) and an 80 x 80 mm Secondary Pillar to ensure perfectly balanced and smooth telescopic movement.
Precision Component Engineering
Vertical Performance: The vertical poles feature a 61 x 21 x 1.0 mm profile, with customizable options ranging from 50 x 40 mm to 60 x 50 mm to meet different aesthetic and security density needs.
Structural Linkage: Every gate incorporates an 80.3 x 15 x 1.0 mm Horizontal Beam, ensuring all sections operate in perfect synchronization with minimal mechanical stress.
telescopic sliding gate tructure and function
Each key component of our telescopic sliding gate is designed to ensure stability, durability, and low long-term costs.
High-power motor
Our telescopic sliding gate is equipped with a high-power motor, which delivers strong, stable driving force. It can smoothly operate even for ≥5m large-span telescopic sliding gates, and maintains reliable performance under frequent opening/closing in high-traffic scenarios (factories, industrial parks). This reduces motor failure risks and lowers long-term maintenance costs.
High-density aluminum
The gate body uses high-density aluminum profile: it balances lightweight design with high structural strength, and has excellent rust/corrosion resistance. Adaptable to diverse outdoor climates (humidity, salt spray), it effectively extends the telescopic sliding gate’s service life and cuts replacement costs for buyers.
Intelligent infrared sen device
Equipped with an intelligent infrared sensor device, our telescopic sliding gate detects obstacles in real time during operation — avoiding clamping or collision risks to ensure safe access. The integrated “WELCOME” display also enhances the entrance/exit management experience.
Running smooth System
With a precision pulley & guide rail structure, the telescopic sliding gate operates smoothly (no jamming or loud noise). This design minimizes component wear, allowing the gate to stay stable and efficient even after long-term continuous use.
Louvered Telescopic Sliding Gates
Solving Your Core Entrance Pain Points
| Business Pain Points | Our Engineered Solutions |
| Space Constraints & Installation Limits: Traditional gates require massive retraction areas, often blocked by existing structures or landscaping. | Space-Saving Telescopic Technology: Our multi-section synchronized design reduces the required back-run space by up to 60%, fitting perfectly into compact industrial sites. |
| Lack of Privacy & Industrial Espionage: Open-style gates expose your internal operations, assets, and high-value inventory to public view. | Premium Louvered Privacy Panels: The angled louvered design provides a solid visual barrier, protecting your facility’s privacy while maintaining a modern, professional aesthetic. |
| High Wind Loads & Structural Fatigue: Solid-surface gates act as “sails” in storms, causing motor strain and potential structural bending. | Aerodynamic Wind-Relief Design: The louvered slats allow controlled airflow to pass through, significantly reducing wind resistance and extending the lifespan of the motor and frame. |
| Middlemen Markups & Slow Support: Dealing with trading companies leads to inflated prices and delayed technical communication for complex projects. | Source Factory Direct (OEM/ODM): As an original manufacturer, we provide factory-direct pricing and 24/7 technical support, ensuring your project meets local compliance without extra costs. |
| Safety Risks in High-Traffic Zones: Heavy gates in busy factories pose a risk of collision with personnel or multi-million dollar logistics vehicles. | Smart Dual-Sensor Safety System: Equipped with infrared anti-collision sensors and auto-rebound logic, our gates stop instantly upon detecting any obstacle to prevent accidents. |
| Slow Lead Times & Customization Issues: Standard gates often don’t fit unique widths, and waiting months for shipping stalls project progress. | Rapid Delivery & Full Customization: We support MOQ: 1 Unit and offer 3-10 days fast delivery. Every gate is custom-sized (up to 20m+) to fit your specific entrance perfectly. |
Which Material to Choose for Automatic Retractable Gates?
Stainless Steel Material
- Material & Process: Made of 201/304 stainless steel; uses welding process (replacement parts require machine welding). The material is hard, durable, and offers excellent wind resistance & chemical resistance.
- Key Feature: Ultra-rugged construction, ideal for high-traffic/heavy-use scenarios (e.g., industrial parks, factories).
- Color: Stainless steel primary color (painting not recommended, as paint adhesion is poor and prone to peeling).
Aluminum Alloy Material
- Material & Process: Made of aluminum alloy; uses screw assembly process (replacement parts are easy to replace). Lifetime rust-free, perfect for chemical plants, acidic areas, coastal regions. The electrophoretic surface provides strong oxidation & corrosion resistance.
- Key Feature: Never rusts, with diverse style options to match different entrance aesthetics.
- Color: Available in black, silver, gray, red (style-dependent).
