Fence Segment Telescopic Sliding Gate
Product Introduction
Ideal for factories, logistics parks, and residential compounds where space is at a premium, our Fence Segment Telescopic Sliding Gate combines robust aluminum construction with smart automation to deliver secure, efficient vehicle access control.
Please share your requirements and detailed information with us.We will quote for you within 24 hours!
More Installation Project Case
Fence Segment Telescopic Sliding Gate Description
Product Positioning: A “Great Wall of Steel” designed specifically for industrial plants, large warehouses, and government agencies with extremely high privacy and security requirements.
- Fully Shielded Design for Enhanced Privacy: Utilizing high-strength aluminum alloy/stainless steel enclosed panels, it completely blocks the view, preventing external prying and providing a solid first line of defense for the core areas of the enterprise.
- Segmented Telescopic Design for Ultimate Space Saving: An innovative telescopic mechanical structure with an extremely high folding ratio allows for unobstructed passage even in narrow side spaces.
- Intelligent Sensor Drive: Standard configuration includes a high-sensitivity infrared anti-collision system and pressure wave anti-sensing technology, ensuring absolute safety for vehicles and pedestrians.
- Weather-Resistant Surface Treatment: Processed with multi-layer fluorocarbon spraying or electrophoresis, it is resistant to acid rain, salt spray, and extreme sunlight, remaining colorfast and rust-free for ten years.
Product Specifications
Technical Specifications
| Item | Specification |
|---|---|
| Max Gate Body Length | 22 meters |
| Clear Opening | 20 meters |
| Height Range | 1m – 2.2m |
| Trackless Max Length | 18 meters (requires extremely flat ground) |
| Running Speed | 12 meters per minute |
| Motor Power | 650W |
| Material | High-quality aluminum alloy (rust-resistant, no buried joints) |
| Stackable Segments | Up to 25 pieces (customizable) |
| Operating Environment | Level ground (no obvious steps/potholes) |
| Ground Tolerance | ≤10cm horizontal drop over 10m (left-right); ≤1cm per meter (front-rear) |
| Motor Protection | Overheating protection (auto power cut-off) |
| Additional Features | Front scrolling display; optional rain/snow/sand-proof frames; harmonic loop routing for electrical safety |
1. High-Performance Telescopic Design
Maximum span: Gate body up to 22 meters, with a clear opening of 20 meters
Height customization: 1m to 2.2m (trackless option available for spans ≤18 meters, requiring extremely flat ground)
Smooth operation: Running speed of 12 meters per minute, powered by a 650W motor
Multi-piece stackable structure: Up to 25 stackable segments (customizable to user length requirements), eliminating post-closure shrinkage issues
2. Premium Aluminum Construction
Crafted from high-quality aluminum alloy, with no buried joints
Beautiful, generous appearance, durable and rust-resistant for long-term outdoor use
Optional upper/lower rain/snow/sand-proof frames to protect internal components from harsh environments
3. Smart & Safe Operation
Motor protection: Built-in overheating protection automatically cuts power during prolonged high-speed operation to extend motor lifespan

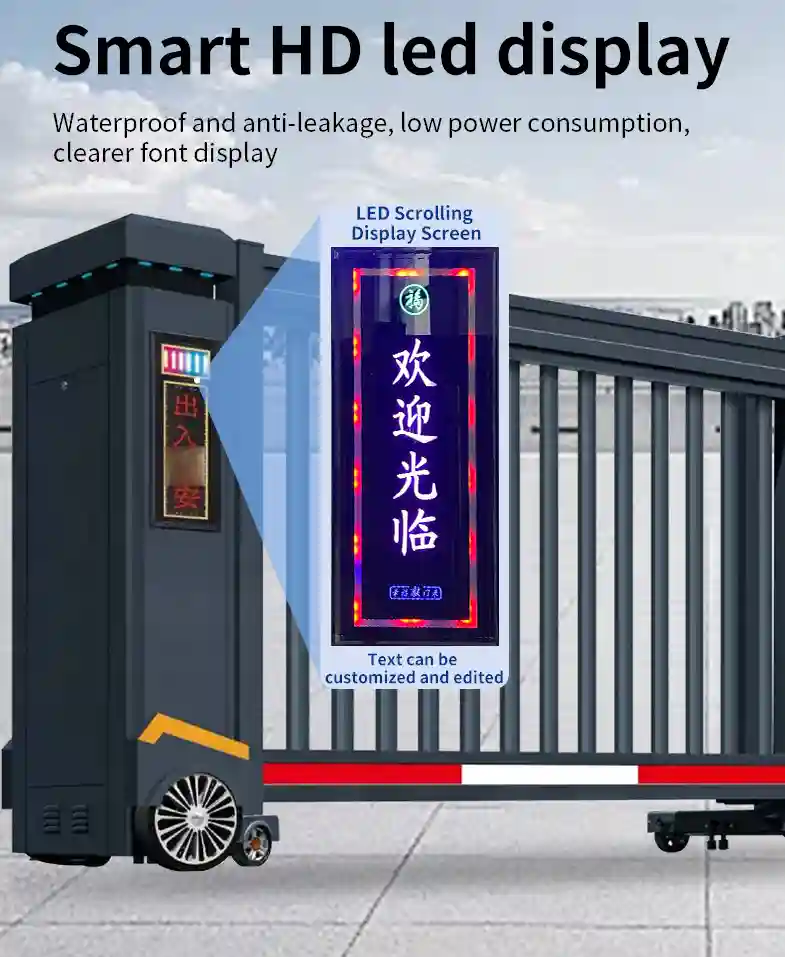

Display screen: Front-mounted scrolling display shows operational prompts or customized messages
Safety technology: Follow-up harmonic loop routing ensures electrical safety
Harsh environment resistance: Weather-sealed design maintains normal function in rain, snow, and sandy conditions
4. Site Compatibility
Suitable for all level-ground installations (no obvious steps or potholes)
Ground tolerance: ≤10cm horizontal drop over 10 meters (left-right), ≤1cm per meter (front-rear)
Trackless option available for spans up to 18 meters (requires perfectly flat ground)
Fence Segment Telescopic Sliding Gate Features & Functions
High-power motor
Our telescopic sliding gate is equipped with a high-power motor, which delivers strong, stable driving force. It can smoothly operate even for ≥5m large-span telescopic sliding gates, and maintains reliable performance under frequent opening/closing in high-traffic scenarios (factories, industrial parks). This reduces motor failure risks and lowers long-term maintenance costs.
High-density aluminum
The gate body uses high-density aluminum profile: it balances lightweight design with high structural strength, and has excellent rust/corrosion resistance. Adaptable to diverse outdoor climates (humidity, salt spray), it effectively extends the telescopic sliding gate’s service life and cuts replacement costs for buyers.

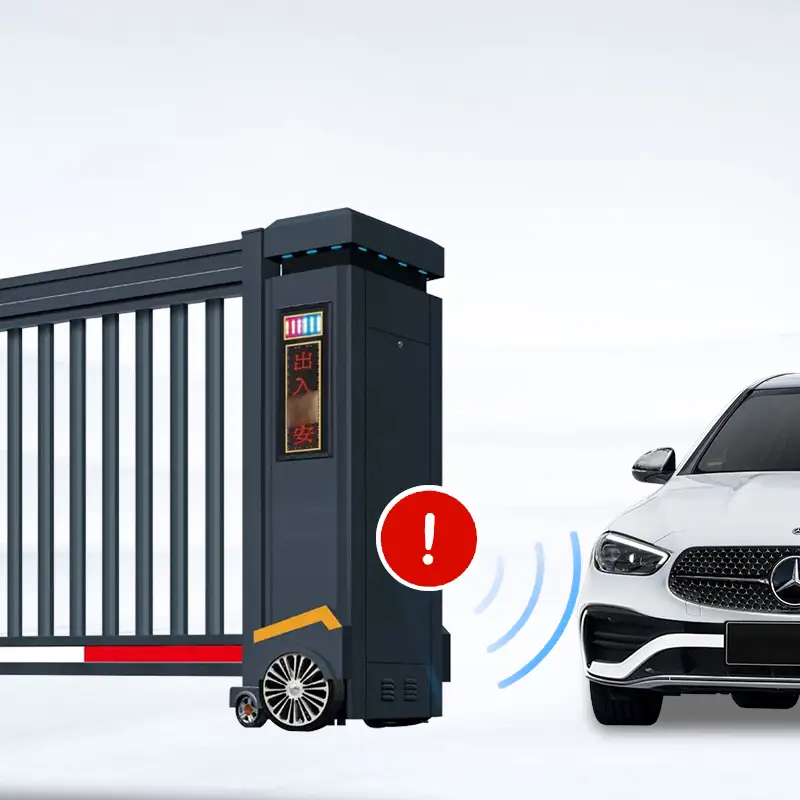

Intelligent infrared sen device
Equipped with an intelligent infrared sensor device, our telescopic sliding gate detects obstacles in real time during operation — avoiding clamping or collision risks to ensure safe access. The integrated “WELCOME” display also enhances the entrance/exit management experience.
Running smooth System
With a precision pulley & guide rail structure, the telescopic sliding gate operates smoothly (no jamming or loud noise). This design minimizes component wear, allowing the gate to stay stable and efficient even after long-term continuous use.
Fence Telescopic Sliding Gate – Pain Points & Solutions
| Core Business Pain Point | Our Targeted Solution |
|---|---|
| Narrow site space, unable to install traditional full-width sliding gates | Multi-segment telescopic fence design: gate panels nest neatly when closed, requiring only 1/3~1/2 of the gate width for lateral storage, maximizing usable site area |
| Wide entrance needs (up to 20m clear opening) but limited installation options | Max gate body length of 22 meters with 20m clear opening, customizable up to 25 stackable segments to fit ultra-wide industrial/logistics entrances |
| Outdoor gate corrosion & rust, leading to high maintenance costs and short lifespan | Gate body made of high-quality aluminum alloy (no buried joints), with electrostatic powder coating for superior rust resistance and durability, reducing long-term maintenance |

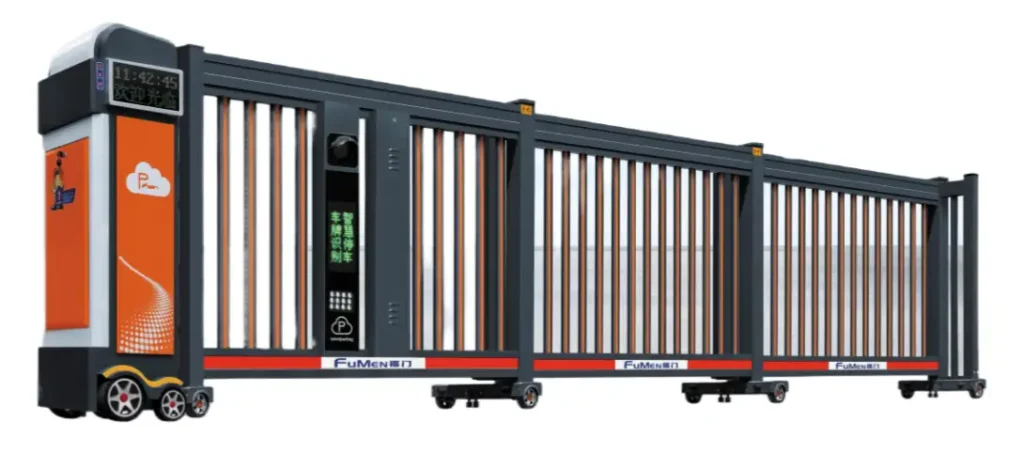

| Slow vehicle passage & manual check-in causing peak-hour congestion | 650W motor with 12m/min running speed; optional ANPR integration for automatic license plate recognition and hands-free access, cutting average 通行时间 to <3 seconds |
| Harsh weather (rain/snow/sand) damaging internal gate components | Optional upper/lower weather-sealed frames to block rain, snow, and sand ingress; IP-rated construction ensures normal operation in extreme outdoor conditions |
| Uneven ground causing gate jamming or unstable operation | Designed for level-ground installation with clear tolerance: ≤10cm horizontal drop over 10m (left-right) and ≤1cm per meter (front-rear); trackless version available for spans ≤18m (requires extremely flat ground) |
| Motor overheating during prolonged high-load operation, shortening service life | Built-in overheating/overcurrent protection: automatically cuts power during continuous high-speed use to prevent burnout and extend motor lifespan |
| Lack of real-time operational feedback & custom site messaging | Front-mounted scrolling display screen: shows operational prompts and customizable welcome/alert messages for better site communication |
| Electrical safety risks in industrial environments | Follow-up harmonic loop routing technology to ensure stable, safe power supply and prevent electrical hazards |
Which Material to Choose for Automatic Retractable Gates?
Stainless Steel Material
- Material & Process: Made of 201/304 stainless steel; uses welding process (replacement parts require machine welding). The material is hard, durable, and offers excellent wind resistance & chemical resistance.
- Key Feature: Ultra-rugged construction, ideal for high-traffic/heavy-use scenarios (e.g., industrial parks, factories).
- Color: Stainless steel primary color (painting not recommended, as paint adhesion is poor and prone to peeling).
Aluminum Alloy Material
- Material & Process: Made of aluminum alloy; uses screw assembly process (replacement parts are easy to replace). Lifetime rust-free, perfect for chemical plants, acidic areas, coastal regions. The electrophoretic surface provides strong oxidation & corrosion resistance.
- Key Feature: Never rusts, with diverse style options to match different entrance aesthetics.
- Color: Available in black, silver, gray, red (style-dependent).
