ANPR And Straight Bar Barrier Gate
Product Basic Information
| Item | Details |
|---|---|
| Product Function | Intelligent vehicle access control barrier gate integrated with ANPR, enabling unmanned vehicle access/release management. |
| Design Feature | Compact body (Main device height: 1700mm; Barrier arm: 1500mm), ideal for space-constrained passages. |
| Reader Panel | Switchable (Supports ANPR, IC card, Bluetooth recognition) to meet diverse management needs. |
| Installation | Modular assembly design; no complex on-site debugging (Saves deployment time & labor costs). |
| Life Cycle | Motor: ≥5 million cycles; ANPR camera: ≥30,000 hours stable operation. |
| Minimum Order | 2 Sets (MOQ) |
Boom barrier gate Introduction
Product Specifications
Straight-Bar Barrier Gate: Efficient, Safe Vehicle Access Control
A dedicated device for motor vehicle entry/exit management—ideal for highway toll gates, parking lots, residential communities, and enterprise entrances, keeping vehicle flow orderly.
- Smooth & Quiet Performance: 24V brushless DC motor enables low-noise operation; stable arm lifting/lowering for seamless access.
- Enhanced Safety: Anti-crush rebound function—arm auto-bounces back on obstruction, protecting vehicles, people and the device.

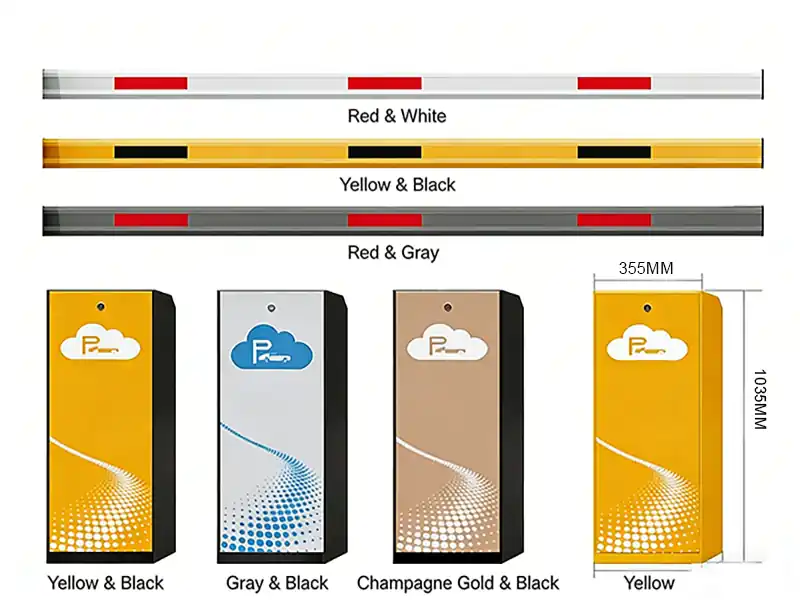

- Flexible Customization: Multiple arm styles available, tailored to entry/exit width and scene needs.
- Expandable Features: Versatile interfaces support safety accessories (pressure wave switches, loop detectors, infrared sensors); compatible with toll systems for automated billing (optional).

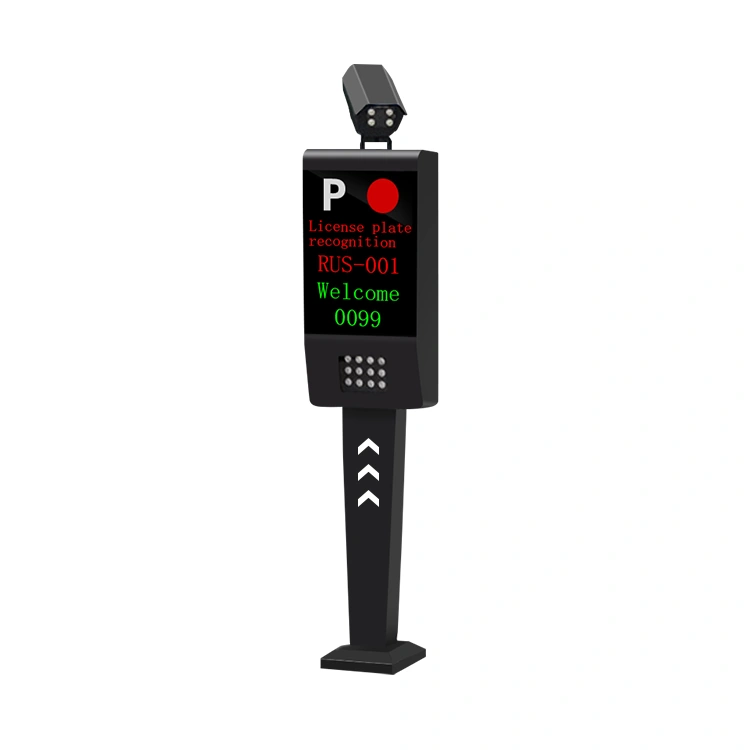

ANPR:
- Adapt To Vehicle Speed:≤35km/h
- Fill Light:<30lux
- Recognition Distance:3-10meters
- Recognition Rate:98%
- Recognition Speed:<30km/h
- Display Screen:Four lines display
- Camera Lens:4-12MM
- Capture Distance:4M
- Camera:1/3CMOS 2Mpixel
- Record:DATABASE
- Management:PARKING SOFTWARE
- Language:English Spanish Russian Japanese Korean Thai Portuguese
- Warranty:12 month
- MOQ:1 set
ANPR And Straight Bar Barrier Gate Feature
300W Camera Recognizes；Multiple Types of License Plates；
Smart barrier gate with high-speed motor; Multiple anti-crushing functions
Unattended
Intelligent Charging
200W High-Speed Powerful Motor；
Amazing High-Speed Capability
ANPR And Straight Bar Barrier Gate
Intelligent Vehicle Access Solution: Solving Your Core Business Pain Points
| Business Pain Points | Our Solutions |
|---|---|
Traffic congestion at entrances/exits due to slow manual verification |
ANPR technology enables license plate recognition in <300ms, enabling barrier arm to lift automatically without stopping, reducing wait time to 2-3 seconds per vehicle |
High labor costs for 24/7 manual toll collection and access management |
Fully automated operation eliminates the need for on-site personnel, reducing labor costs by up to 80% |
Risk of vehicle damage from barrier arm misoperation |
Anti-crush rebound function + vehicle loop detector ensures barrier arm automatically bounces back when obstructed, protecting vehicles and equipment |
Inability to integrate with existing parking management systems |
Supports TCP/IP/RS485 communication interfaces, seamlessly connecting to parking software and cloud platforms for unified data management |
Poor recognition accuracy in low-light environments |
Equipped with 2Mpixel 1/3CMOS camera + <30lux fill light, ensuring 98% recognition accuracy day and night |
High maintenance costs due to frequent equipment failures |
24V brushless DC motor with ≥5 million cycle lifespan, IP54 protection rating, and 12-month warranty for long-term stable operation |
