Manual Retractable Gates vs. Automatic Retractable Gates: The Ultimate Buyer’s Guide:

If you’re in the market for a new retractable gate to keep your property safe, this is the big decision. For high-traffic commercial centers, factories, or residential areas, the choice of access control system determines the smoothness of on-site operations. A suitable retractable gate not only ensures security but also significantly reduces congestion during peak hours, bringing twice the results with half the effort to your daily management. Still struggling to decide whether to choose an automatic or manual retractable gate?

Zhanjiang Group, as a manufacturer with many years of experience in retractable gate production, has served countless projects from the Philippines to Thailand and other regions. We've compiled this practical selection guide, analyzing the advantages and disadvantages of both types, their applicable scenarios, and easily overlooked details—ensuring the gate you choose fits your budget while providing sufficient security.

Sharing a case study from last month: A client in Manila contacted us for help. His site had a 12-meter-wide entrance that needed to be clear for pedestrian traffic and vehicles, but he was unsure which retractable gate to choose. Our sales engineer immediately recommended an electric retractable barrier gate for the site.

Retractable gates are widely used in factories, warehouses, schools, and residential areas. But many buyers still ask a basic question: Manual vs. Automatic Retractable Gates – Which is right for me?

1. Core Differences

Function	Manual Retractable Gate	Automatic Retractable Gate
Operation	Human-operated (Push/Pull)	Motor-operated (Remote/Sensor/LPR)
Starting Cost	Budget-friendly	Higher (Motor + Control System)
Maintenance	Minimal (Mechanical only)	Moderate (Electrical + Mechanical)
Connectivity	None	High (Access Control/Smart Parking)
Security	Basic manual access control	Infrared sensors and auto-stop features

2. Working Principle of Retractable Gates

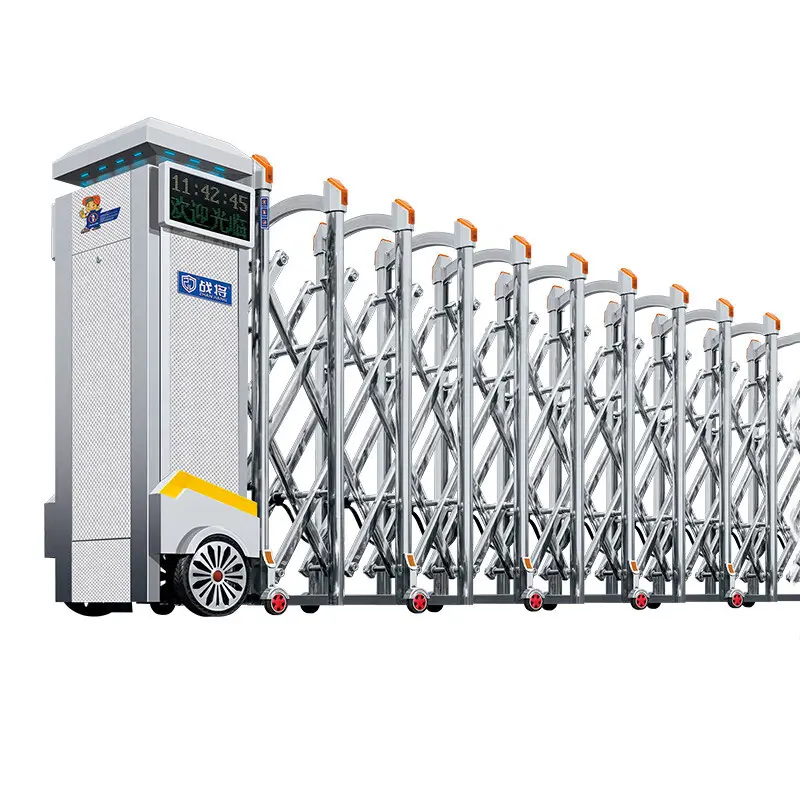

Retractable gates function using a motor to extend and retract the gate body. In a typical retractable gate system, there are several key components working together:

• The motor is responsible for providing the power to move the gate,
• The control system (such as a remote control, button, or smart controller) sends signals to operate it,
• There is also a track or guide system to make sure the gate moves in a straight and stable direction,
• The gate body is designed to fold or extend when opening and closing.

How Manual and Automatic Retractable Gates Work:

Automatic Retractable Gate: Once you press the remote control, the system receives the signal and activates the motor, which then drives the gate to move along the track until it fully opens or closes, stopping automatically at the right position.

Manual Retractable Gate: Much simpler — it doesn’t use a motor at all, and the user just pushes or pulls the gate by hand.

3. Choice Based on the Situation

Choose Manually Operated Gates:

Manually operated gates are suitable for locations where their use prevents re-entry, including:

• Low-traffic areas: private homes or backyards where the gates are opened a few times a week
• Remote locations: areas without a permanent power supply
• Temporary locations: short-term projects where long-term technology use is not economical

Choose an Automatic Retractable Gate:

Automatic retractable gates are the industry standard for commercial and industrial efficiency, ideal for:

• High-traffic areas: industrial, telecommunications or commercial buildings with more than 10 vehicles passing per day
• Modern business parks: areas with high visibility for visitors and no need for manual operation
• High-security areas: areas requiring license plate recognition (LPR) systems, RFID cards or security bollards

4. Key Purchasing Factors: What to Check Before Buying

Evaluate these four technical aspects during your selection process:

A. Material Durability (The "Rust" Factor)

According to different site environments: If you are in a coastal area or high-humidity environment (like Southeast Asia), look for high-grade aluminum alloy or 304 stainless steel. Avoid cheap alloys that might corrode and seize the folding mechanisms.

B. Motor Specifications and Power

Gate Power and Length: The motor power (W) should be selected based on the total weight of the gate. We offer a wide range of industrial motors with 370W, 450W, 470W and 500W, ensuring smooth and stable operation without overloading the system. Longer gates require higher power to overcome friction and inertia.

Voltage Compatibility: We select power sources according to your local power grid (e.g. 220V/50Hz for Southeast Asia/Europe, 110V/60Hz for the USA and some regions).

Drive System:

• Railless (Dual Motor): Ideal for gates 12 meters long and less. The magnetic navigation system eliminates the need for rails on the driveway, ensuring a neat and orderly appearance.
• Tracked (Single-Motor): Strongly recommended for gates over 12 meters. A center track provides the necessary physical guidance to prevent "drifting" or misalignment over long distances.

C. Safety Features

A moving 20-meter gate can be dangerous. Ensure your automatic gate includes:

• Infrared Anti-Collision Sensors: To stop the gate if a person or vehicle is in the path.
• Emergency Manual Override: Essential for operation during power outages.

5. Frequently Asked Questions

Q: What is the typical lifespan?
A: A good retractable gate should last 8-12 years with basic maintenance. This includes cleaning the path of debris, keeping the electrical box dust-free, and regularly lubricating the winding and rolling tracks.

Q: Can this gate withstand high winds?
A: Yes, but its structure is important. For areas prone to wind (such as coastal industrial parks), we recommend a strong aluminum frame and the addition of small wind-resistant panels. Always let us know the local weather so we can provide reinforced cables.

Q: Can I integrate the gate with my existing security system (e.g., RFID or LPR)?
A: Yes. Many modern, easy-to-use gates are designed to integrate seamlessly. Whether you use License Plate Recognition (LPR), RFID tags, ID card scanners, or a mobile app, we can provide the necessary site inspection and integration support for your gate.

Q: Is the gate width adjustable?
A: Yes. A retractable gate is modular. We can adjust the entire length to fit any gate width, from a small 4-foot driveway to a large 100-foot gate.

Q: Is installation easy?
A: For manual gates, it is very easy. For automatic gates, it requires basic electrical knowledge and proper grounding. We provide detailed wiring diagrams and installation instructions to ensure that your local contractor can install it correctly the first time.

Q: Which drive system should I choose?
A: It depends on the width of the gate and the terrain of the installation site:

• Railless (Dual Motor): The best option for gates under 12 meters wide, provided the ground is level. It provides a clear view and eliminates the risk of being crushed or blocked by heavy trucks.
• Tracked (Single Motor): For gates over 12 meters, we highly recommend adding a bottom track. The extra length can cause the gate to sway in the wind or bend on uneven ground; a single center track keeps the gate perfectly straight over long distances.
