Cantilever Sliding Gate: Ultimate Guide to Suspended Cantilever Gate
Are you looking for the durable,no-track,high security the cantilever sliding gate,which is use the industrial, commercial, warehouse and factory entrances.Our cantilever gates is the best choice.This can absolutely solves track jam, freezing, ground damage and frequent maintenance.

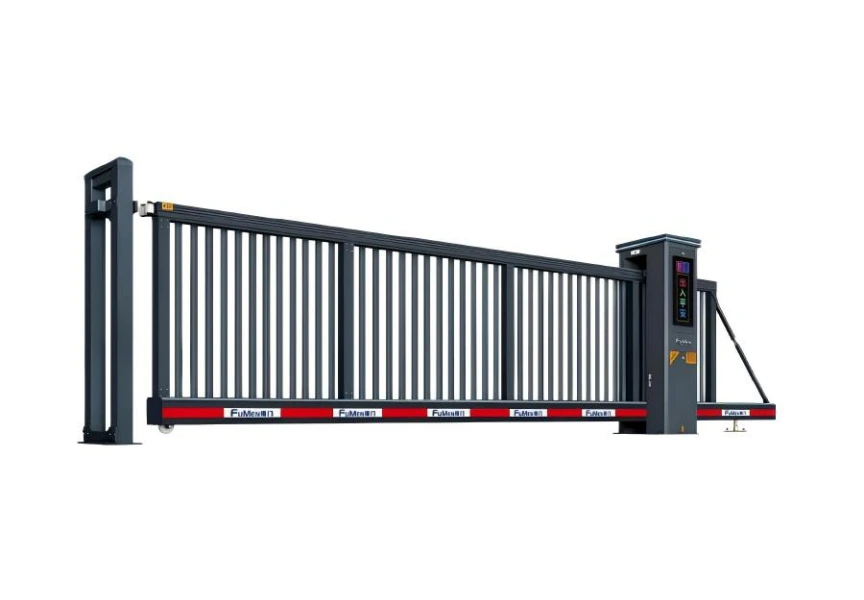

What Is a Cantilever Gate
Cantilever sliding gate,also known as a suspended gate,which is a special automatic gate,this can runs fully suspended without any ground track.cantilever gates use balance beam structure and counterweight design,ensure open and close in the ground.
The Sealing Plate Cantilever Sliding Gate no only no-track running smoothly，which have Privacy Protection，wind resistance and anti-corrosion performance, widely used in factories, logistics parks, grain storage stations, industrial parks and high-security zones.
Before the Installation
- The gate was easy to jam with debris, leaves and dirt.
- The interior of the grain depot was fully visible from the outside, risking unauthorized viewing and information leakage.
- Low privacy and poor anti-theft performance, unable to meet high-level security requirements.

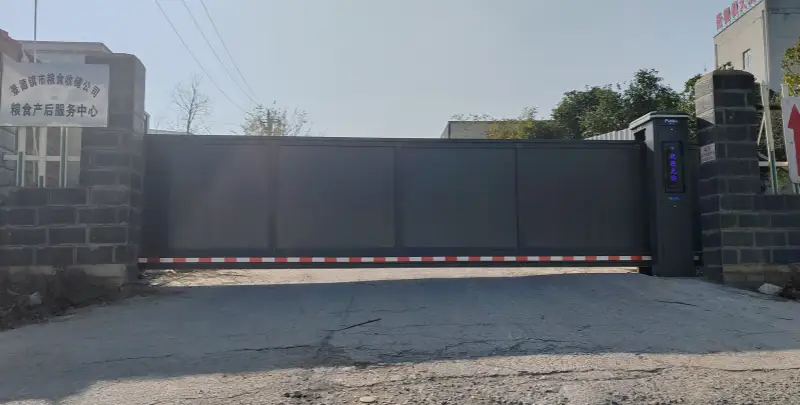

After Installing Our Full Sealed Panel Cantilever Gate
- ✅ 100% visual shielding: Fully sealed panels block all outside view, protecting grain reserves and internal operations.
- ✅ Trackless floating operation: No ground rails, no jamming, no maintenance troubles.
- ✅ Enhanced security: High gate body + anti-climbing design, greatly improving site safety.
- ✅ All-weather reliability: Perfect for high temperature and humid climate in Zhanjiang, long service life.
How Does a Cantilever Gate Work
Many customers want to know how does a cantilever gate work.
- The whole pannel use design of the upper and lower beam,which be the form a stable cantilever force structure.
- with the help of the rear counterweight and fixed support frame,the gate still keep balanced suspension without ground track support.
- The external gear rack motor drives the gate to move linearly, running smoothly without slipping, deviation or jamming.

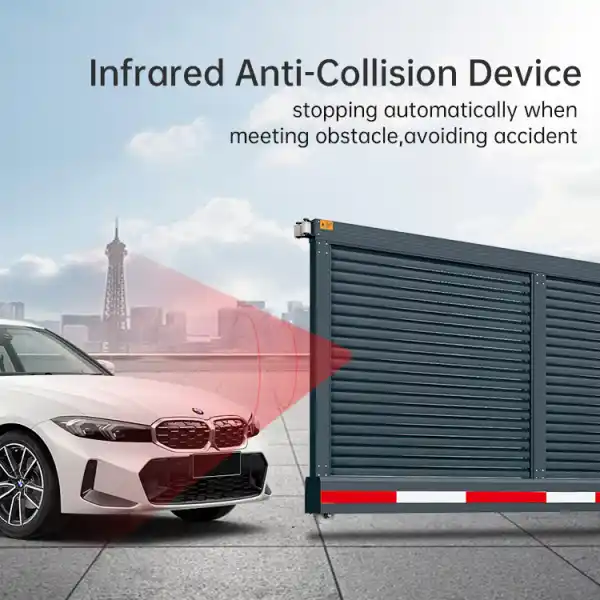

- Infrared anti-collision and safety protection system automatically senses obstacles to realize stop and rebound.
This simple but scientific structure makes cantilever gates ensure run stably,so that adapt to the slopes, uneven ground, snow, rainy and coastal harsh environments.
Why Choose Sealed Panel Cantilever Sliding Gate
1. Trackless Suspended Design No Ground Troubles
The core advantage of a cantileved sliding gate is no ground track,can avoid jam track and snow ,and heavy vehicles crushed.so that can saving construction cost and later maintenance cost.
2. Full Privacy Sealed Panel Design
Our cantilever sliding gate adopts fully sealed panel design, completely shielding the line of sight inside the factory, improving site confidentiality and safety, very suitable for grain storage, warehousing and restricted access places.
3. Large Span & Strong Wind Resistance
Heavy-duty cantilever gates support ultra-long span up to 18m. Thickened aluminum alloy beam structure enhances wind resistance, no sagging, no shaking even in strong wind, meeting the wide entrance demand of industrial parks and logistics parks.
4. 6063-T5 Aluminum Alloy Corrosion Resistant
The main material of cantilever sliding gates is 6063-T5 aluminum alloy, matched with stainless steel tension rod, rust-proof, anti-corrosion, UV resistant, suitable for coastal humid, high temperature and cold areas, long service life.
External independent motor box design, no need to disassemble the gate body for maintenance and inspection. Motor overheat and overload protection effectively prolong service life, reduce later maintenance frequency.

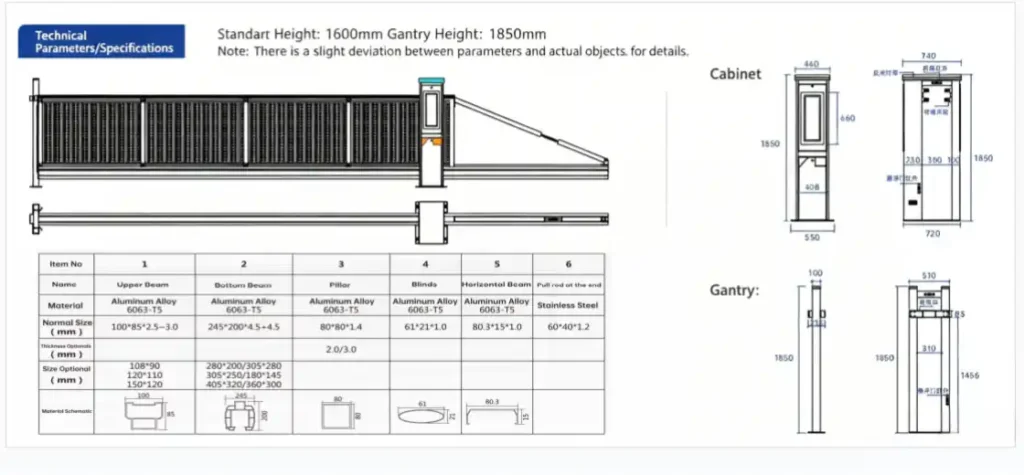

Sealed Panel Cantilever Sliding Gate Specification
| Specification | Details |
|---|---|
| Gate Type | Sealed Panel Cantilever Sliding Gate |
| Material | 6063-T5 Aluminum Alloy (Main Body) + Stainless Steel (Pull Rod) |
| Max Gate Length | 18m (Light-duty: 12m) |
| Running Speed | 12m/min |
| Motor Power | 450W |
| Standard Height | 1600mm |
| Optional Height | Customizable |
| Safety Features | Infrared anti-collision, anti-climbing alarm, motor overheat/overload protection |
| Drive System | External gear & rack drive |
| Track Design | Trackless, fully suspended |
| Operating Environment | Suitable for high/low temperature, wind, rain, snow, slopes, and uneven ground |
Ideal Application of Cantilever Sliding Gate
- Industrial manufacturing factory
- Logistics park & warehouse
- Grain storage & agricultural base
- Commercial park & residential compound
- Coastal engineering & high security restricted area
FAQ
Q1: What is a cantilever gate
A cantilever gate is a trackless suspended sliding gate that runs without ground rail, adopting balance cantilever structure, featuring stable operation, low maintenance and strong environmental adaptability, also called suspended gate or cantilever sliding gate.
Q2: How does a cantilever gate work
It uses rear counterweight and balanced beam structure to keep the gate suspended, driven by gear rack motor to realize linear opening and closing, with infrared safety protection, no track, no deviation and no jamming.
Q3: Where can I buy cantilever gates for sale
You can buy wholesale and custom cantilever sliding gates directly from us, a professional China manufacturer, with factory price, complete models and global project supply.
Q4: How to build a cantilever gate
Building a qualified cantilever gate needs professional mechanical balance design, aluminum profile matching and power system debugging. It is not recommended DIY; choose professional manufacturer is safer and more cost-effective.
Q5: How to build a cantilever sliding gate
The structure of cantilever sliding gates is more complex than ordinary gates, involving wind resistance, span balance and safety configuration. Professional manufacturer customized production is the best choice for engineering and commercial use.
If you need a customized solution for your factory, check our [Cantilever Sliding Gate ] or contact us via WhatsApp：+8618927792680
